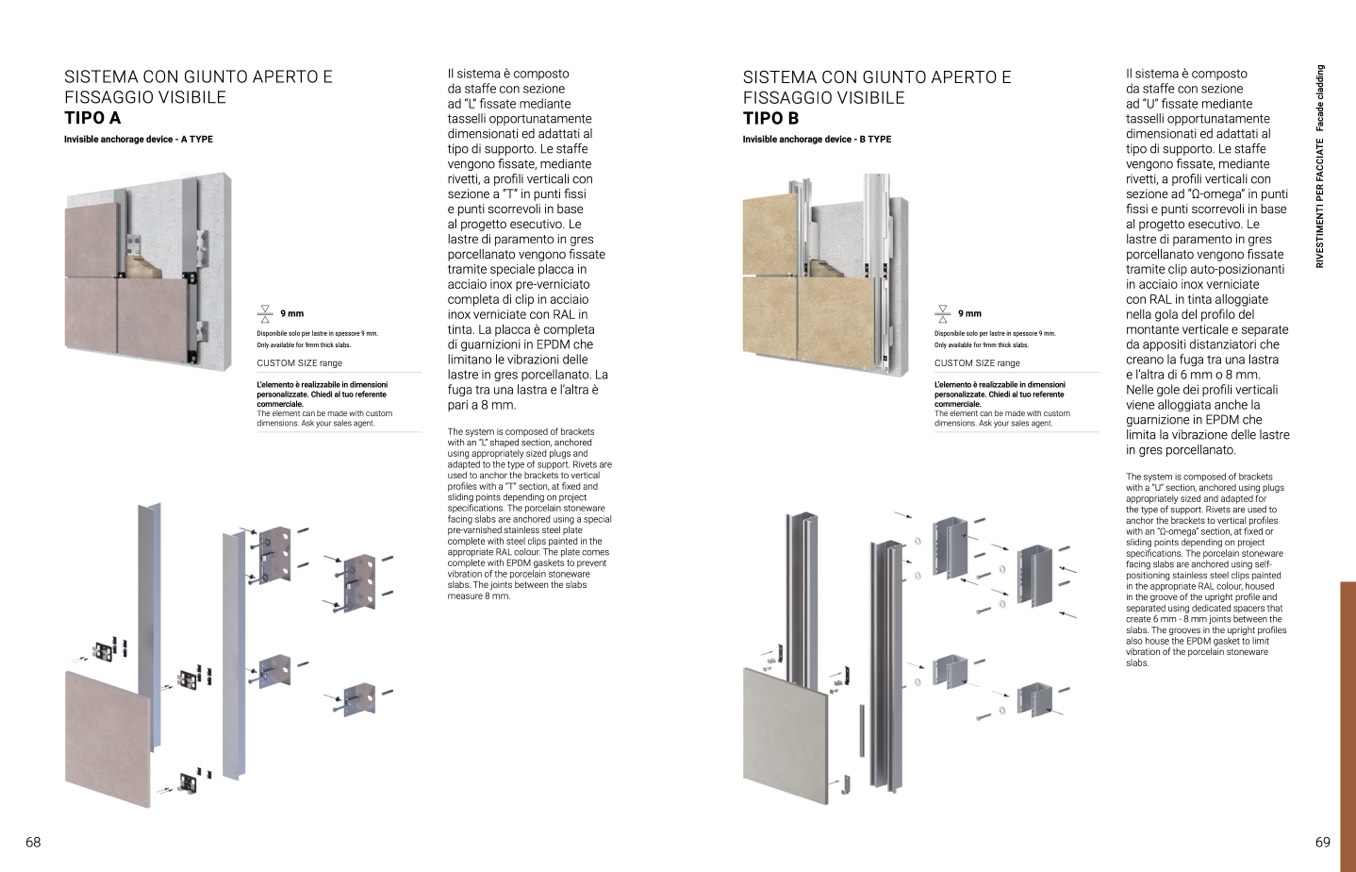

SISTEMA CON GIUNTO APERTO E

FISSAGGIO VISIBILE

TIPO A

Invisible anchorage device - A TYPE

Il sistema è composto

da staffe con sezione

ad “L” fissate mediante

tasselli opportunatamente

dimensionati ed adattati al

tipo di supporto. Le staffe

vengono fissate, mediante

rivetti, a profili verticali con

sezione a “T” in punti

fissi

e punti scorrevoli in base

al progetto esecutivo. Le

lastre di paramento in gres

porcellanato vengono fissate

tramite speciale placca in

acciaio inox pre-verniciato

completa di clip in acciaio

inox verniciate con RAL in

tinta. La placca

è completa

di guarnizioni in EPDM che

limitano le vibrazioni delle

lastre in gres porcellanato. La

fuga tra una lastra e l’altra è

pari a 8 mm.

The system is composed of brackets

with an “L” shaped section, anchored

using appropriately sized plugs and

adapted to the type of support. Rivets are

used to anchor the brackets to vertical

profiles with a “T” section, at fixed and

sliding points depending on project

specifications. The porcelain stoneware

facing slabs are anchored using a special

pre-varnished stainless steel plate

complete with steel clips painted in the

appropriate RAL colour. The plate comes

complete with EPDM gaskets to prevent

vibration of the porcelain stoneware

slabs. The joints between the slabs

measure 8 mm.

SISTEMA CON GIUNTO APERTO E

FISSAGGIO VISIBILE

TIPO B

Invisible anchorage device - B TYPE

Il sistema è composto

da staffe con sezione

ad “U”

fissate mediante

tasselli opportunatamente

dimensionati ed adattati al

tipo di supporto. Le staffe

vengono

fissate, mediante

rivetti, a profili verticali con

sezione ad “Ω-omega” in punti

fissi e punti scorrevoli in base

al progetto esecutivo. Le

lastre di paramento in gres

porcellanato vengono fissate

tramite clip auto-posizionanti

in acciaio inox verniciate

con RAL in tinta alloggiate

nella gola del profilo del

montante verticale e separate

da appositi distanziatori che

creano la fuga tra una lastra

e l’altra di 6 mm o 8 mm.

Nelle gole dei pro

fili verticali

viene alloggiata anche la

guarnizione in EPDM che

limita la vibrazione delle lastre

in gres porcellanato.

The system is composed of brackets

with a “U” section, anchored using plugs

appropriately sized and adapted for

the type of support. Rivets are used to

anchor the brackets to vertical pro

files

with an “Ω-omega” section, at

fixed or

sliding points depending on project

specifications. The porcelain stoneware

facing slabs are anchored using self-

positioning stainless steel clips painted

in the appropriate RAL colour, housed

in the groove of the upright profile and

separated using dedicated spacers that

create 6 mm - 8 mm joints between the

slabs. The grooves in the upright pro

files

also house the EPDM gasket to limit

vibration of the porcelain stoneware

slabs.

9 mm

Disponibile solo per lastre in spessore 9 mm.

Only available for 9mm thick slabs.

CUSTOM SIZE range

L’elemento è realizzabile in dimensioni

personalizzate. Chiedi al tuo referente

commerciale.

The element can be made with custom

dimensions. Ask your sales agent.

9 mm

Disponibile solo per lastre in spessore 9 mm.

Only available for 9mm thick slabs.

CUSTOM SIZE range

L’elemento

è realizzabile in dimensioni

personalizzate. Chiedi al tuo referente

commerciale.

The element can be made with custom

dimensions. Ask your sales agent.
