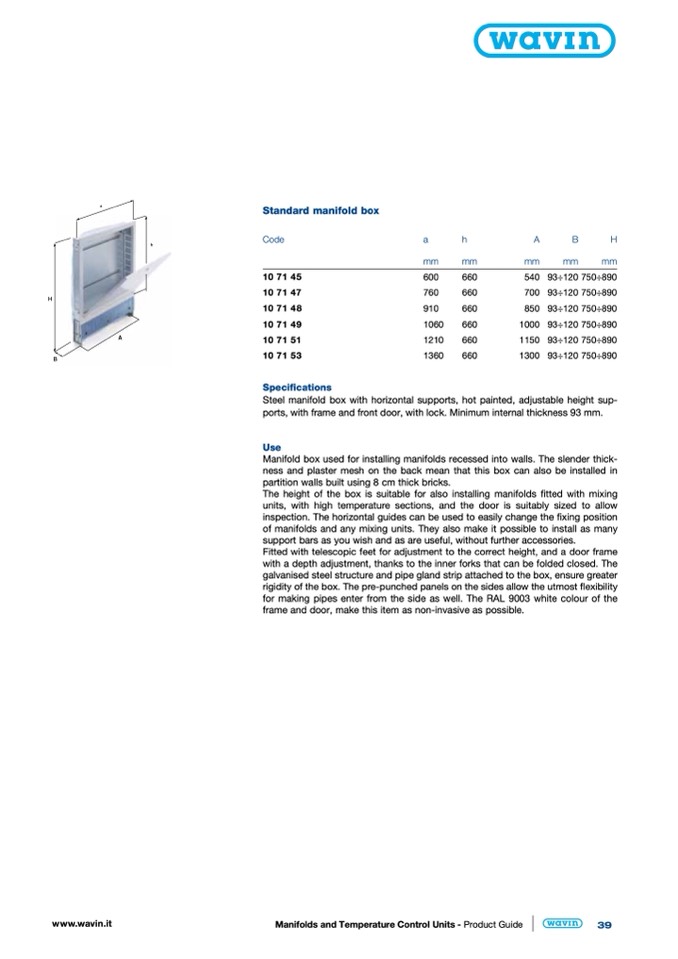

Standard manifold box

Code

a

h

A

B

H

mm

mm

107145

600

660

107147

760

660

107148

910

660

107149

1060

660

107151

1210

660

107153

1360

660

Specifications

mm

mm

mm

540 93÷120 750÷890

700 93÷120 750÷890

850 93÷120 750÷890

1000 93÷120 750÷890

1150 93÷120 750÷890

1300 93÷120 750÷890

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

39

Steel manifold box with horizontal supports, hot painted, adjustable height sup-

ports, with frame and front door, with lock. Minimum internal thickness 93 mm.

Use

Manifold box used for installing manifolds recessed into walls. The slender thick-

ness and plaster mesh on the back mean that this box can also be installed in

partition walls built using 8 cm thick bricks.

The height of the box is suitable for also installing manifolds fitted with mixing

units, with high temperature sections, and the door is suitably sized to allow

inspection. The horizontal guides can be used to easily change the fixing position

of manifolds and any mixing units. They also make it possible to install as many

support bars as you wish and as are useful, without further accessories.

Fitted with telescopic feet for adjustment to the correct height, and a door frame

with a depth adjustment, thanks to the inner forks that can be folded closed. The

galvanised steel structure and pipe gland strip attached to the box, ensure greater

rigidity of the box. The pre-punched panels on the sides allow the utmost

flexibility

for making pipes enter from the side as well. The RAL 9003 white colour of the

frame and door, make this item as non-invasive as possible.
