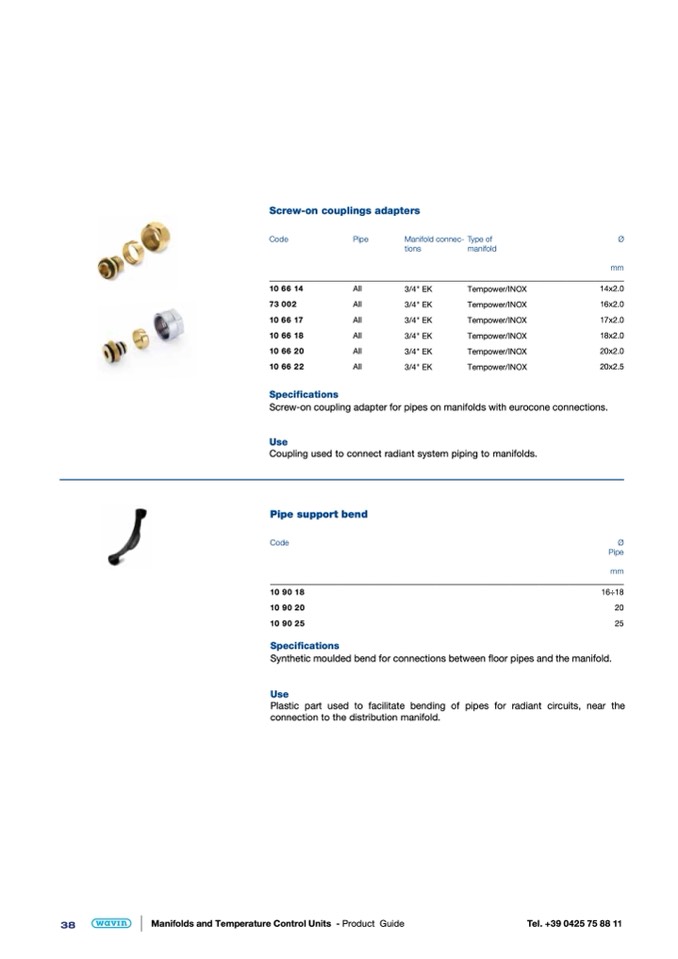

Screw-on couplings adapters

Code

Pipe

106614

All

73 002

All

106617

All

106618

All

106620

All

106622

All

Specifications

Manifold connec-

tions

3/4" EK

3/4" EK

3/4" EK

3/4" EK

3/4" EK

3/4" EK

Type of

manifold

Tempower/INOX

Tempower/INOX

Tempower/INOX

Tempower/INOX

Tempower/INOX

Tempower/INOX

Ø

mm

14x2.0

16x2.0

17x2.0

18x2.0

20x2.0

20x2.5

Screw-on coupling adapter for pipes on manifolds with eurocone connections.

Use

Coupling used to connect radiant system piping to manifolds.

Pipe support bend

Code

Ø

Pipe

mm

10 90 18

16÷18

10 90 20

10 90 25

Specifications

Synthetic moulded bend for connections between floor pipes and the manifold.

Use

20

25

Plastic part used to facilitate bending of pipes for radiant circuits, near the

connection to the distribution manifold.
