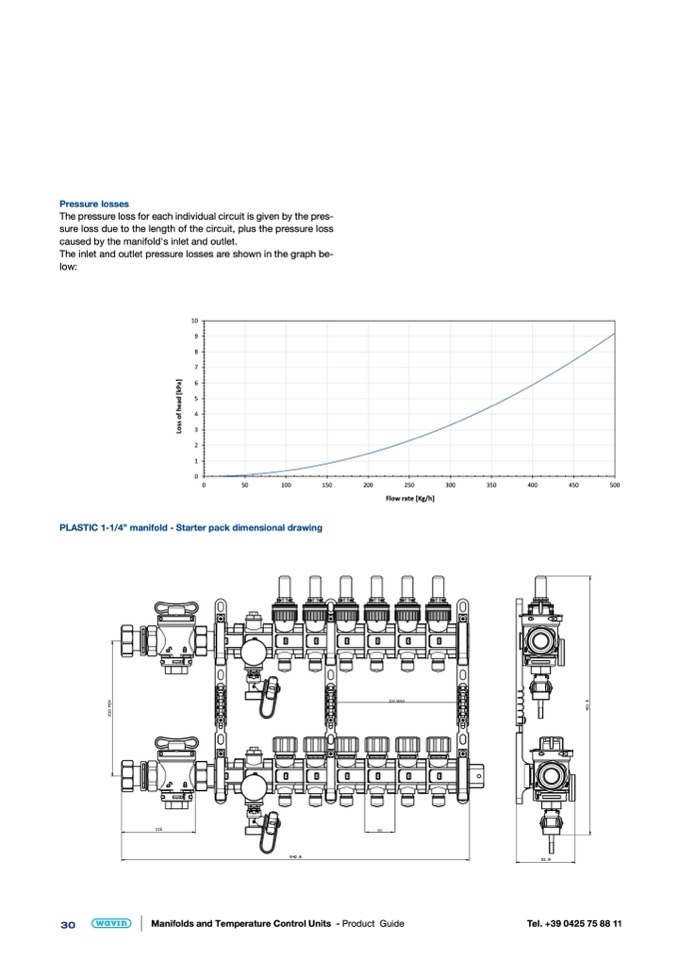

Pressure losses
The pressure loss for each individual circuit is given by the pres-
sure loss due to the length of the circuit, plus the pressure loss
caused by the manifold's inlet and outlet.
The inlet and outlet pressure losses are shown in the graph be-
low:
10
9
8
7
6
5
4
3
2
1
0
0
50
100
150
200
250
300
350
400
450
500
Flow rate [Kg/h]
L
o
s
s
o
f
h
e
a
d
[
k
P
a
]
PLASTIC 1-1/4” manifold - Starter pack dimensional drawing
