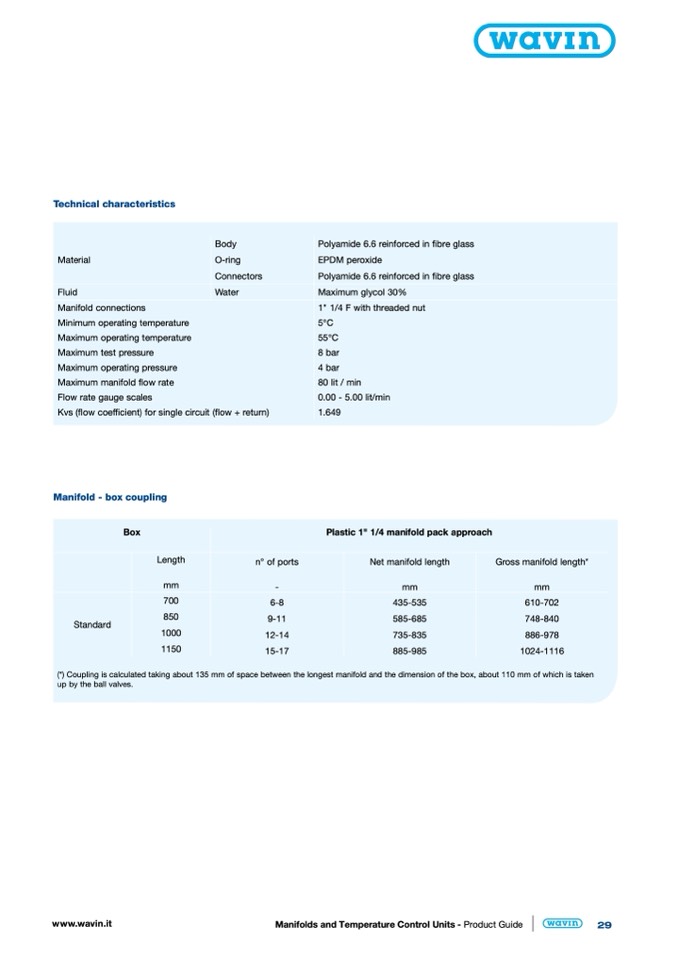

Technical characteristics

Material

Fluid

Body

O-ring

Connectors

Water

Polyamide 6.6 reinforced in fibre glass

EPDM peroxide

Polyamide 6.6 reinforced in fibre glass

Maximum glycol 30%

1" 1/4 F with threaded nut

5°C

55°C

8 bar

4 bar

80 lit / min

0.00 - 5.00 lit/min

1.649

Plastic 1" 1/4 manifold pack approach

435-535

585-685

735-835

885-985

Manifold connections

Minimum operating temperature

Maximum operating temperature

Maximum test pressure

Maximum operating pressure

Maximum manifold flow rate

Flow rate gauge scales

Kvs (flow coefficient) for single circuit (flow + return)

Manifold - box coupling

Box

Length

mm

n° of ports

-

Net manifold length

mm

Standard

700

850

1000

1150

6-8

9-11

12-14

15-17

Gross manifold length*

mm

610-702

748-840

886-978

1024-1116

(*) Coupling is calculated taking about 135 mm of space between the longest manifold and the dimension of the box, about 110 mm of which is taken

up by the ball valves.
