bordeaux
Colori / Colors
BORDEAUX
BIANCO
GRIGIO
Caratteristiche / Charateristics

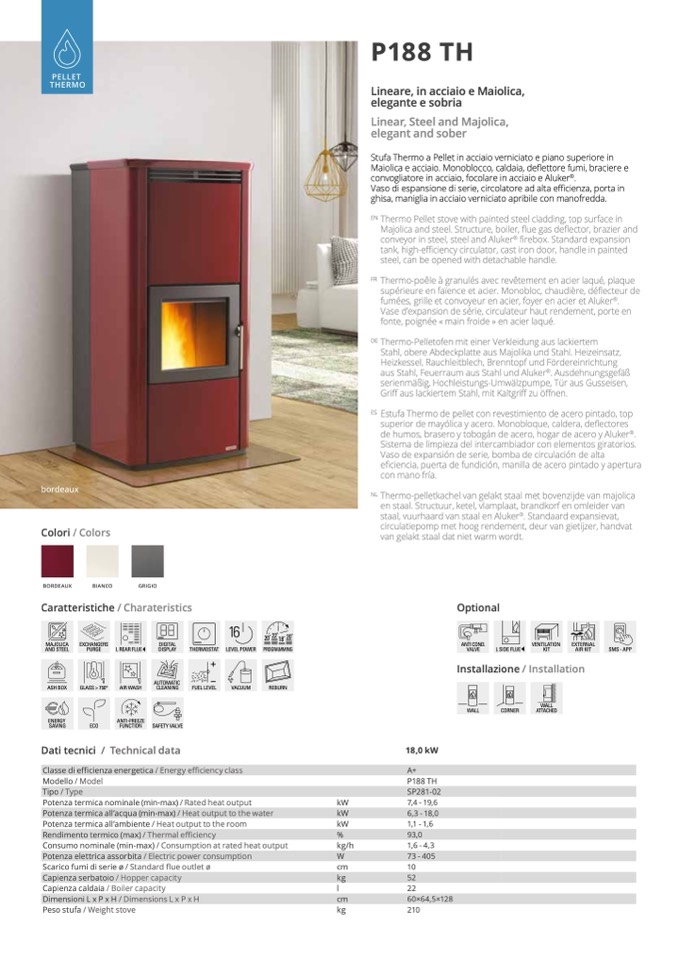

P188 TH
Lineare, in acciaio e Maiolica,
elegante e sobria
Linear, Steel and Majolica,
elegant and sober
Stufa Thermo a Pellet in acciaio verniciato e piano superiore in
Maiolica e acciaio. Monoblocco, caldaia, deflettore fumi, braciere e
convogliatore in acciaio, focolare in acciaio e Aluker
®
.
Vaso di espansione di serie, circolatore ad alta efficienza, porta in
ghisa, maniglia in acciaio verniciato apribile con manofredda.
EN
Thermo Pellet stove with painted steel cladding, top surface in
Majolica and steel. Structure, boiler, flue gas deflector, brazier and
conveyor in steel, steel and Aluker
®
firebox. Standard expansion
tank, high-efficiency circulator, cast iron door, handle in painted
steel, can be opened with detachable handle.
FR
Thermo-poêleàgranulésavecrevêtementenacierlaqué,plaque
supérieure en faïence et acier. Monobloc, chaudière, déflecteur de
fumées, grille et convoyeur en acier, foyer en acier et Aluker
®
.
Vase d’expansion de série, circulateur haut rendement, porte en
fonte, poignée « main froide » en acier laqué.
DE
Thermo-Pelletofen mit einer Verkleidung aus lackiertem
Stahl, obere Abdeckplatte aus Majolika und Stahl. Heizeinsatz,
Heizkessel, Rauchleitblech, Brenntopf und Fördereinrichtung
aus Stahl, Feuerraum aus Stahl und Aluker
®
. Ausdehnungsgefäß
serienmäßig, Hochleistungs-Umwälzpumpe, Tür aus Gusseisen,
Griff aus lackiertem Stahl, mit Kaltgriff zu öffnen.
ES
EstufaThermodepelletconrevestimientodeaceropintado,top
superior de mayólica y acero. Monobloque, caldera, deflectores
de humos, brasero y tobogán de acero, hogar de acero y Aluker
®
.
Sistema de limpieza del intercambiador con elementos giratorios.
Vaso de expansión de serie, bomba de circulación de alta
eficiencia, puerta de fundición, manilla de acero pintado y apertura
con mano fría.
NL
Thermo-pelletkachel van gelakt staal met bovenzijde van majolica
en staal. Structuur, ketel, vlamplaat, brandkorf en omleider van
staal, vuurhaard van staal en Aluker
®
. Standaard expansievat,
circulatiepomp met hoog rendement, deur van gietijzer, handvat
van gelakt staal dat niet warm wordt.
Optional
Installazione / Installation
20
20
MAJOLICA
AND STEEL
EXCHANGERS
PURGE
DIGITAL
DISPLAY
LEVEL POWER
22
18
PROGRAMMING
ANTI COND.
VALVE
L REAR FLUE
THERMOSTAT
L SIDE FLUE
VENTILATION
KIT
EXTERNAL
AIR KIT
SMS - APP
ASH BOX
GLASS > 750°
AIR WASH
AUTOMATIC
CLEANING
FUEL LEVEL
VACUUM
REBURN
ENERGY
SAVING
ECO
ANTI-FREEZE
FUNCTION
SAFETY VALVE
WALL
ATTACHED
WALL
CORNER
Dati tecnici / Technical data
18,0 kW
Classe di efficienza energetica / Energy efficiency class
A+
Modello / Model
P188 TH
Tipo / Type
SP281-02
Potenza termica nominale (min-max) / Rated heat output
kW
7,4 - 19,6
Potenza termica all’acqua (min-max) / Heat output to the water
kW
6,3 - 18,0
Potenza termica all’ambiente / Heat output to the room
kW
1,1 - 1,6
Rendimento termico (max) / Thermal efficiency
%
93,0
Consumo nominale (min-max) / Consumption at rated heat output
kg/h
1,6 - 4,3
Potenza elettrica assorbita / Electric power consumption
W
73-405
Scarico fumi di serie ø / Standard flue outlet ø
cm
10
Capienza serbatoio / Hopper capacity
kg
52
Capienza caldaia / Boiler capacity
l
22
DimensioniLxPxH/DimensionsLxPxH
cm
60×64,5×128
Peso stufa / Weight stove
kg
210
