iQ A10 – with mixing

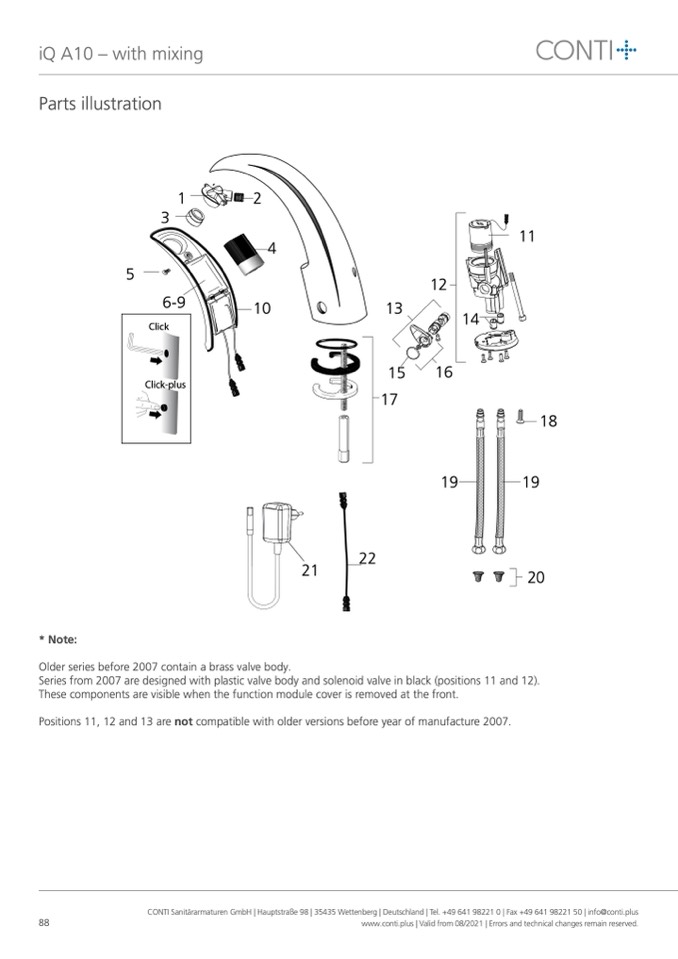

Parts illustration

5

6-9

Click

Click-plus

4

10

1

2

3

11

12

14

15

16

17

19

22

Older series before 2007 contain a brass valve body�

Series from 2007 are designed with plastic valve body and solenoid valve in black (positions 11 and 12)�

These components are visible when the function module cover is removed at the front�

Positions 11, 12 and 13 are not compatible with older versions before year of manufacture 2007�

* Note:

21

18

19

20
