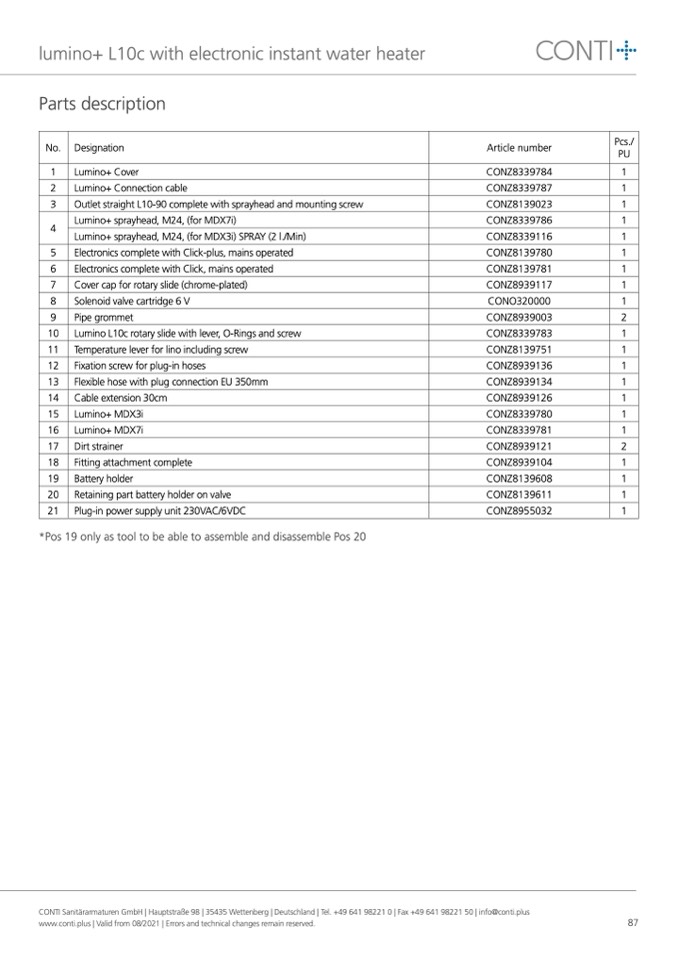

lumino+ L10c with electronic instant water heater

Parts description

No�

Designation

Article number

Pcs�/

PU

1

Lumino+ Cover

CONZ8339784

1

2

Lumino+ Connection cable

CONZ8339787

1

3

Outlet straight L10-90 complete with sprayhead and mounting screw

CONZ8139023

1

4

Lumino+ sprayhead, M24, (for MDX7i)

CONZ8339786

1

Lumino+ sprayhead, M24, (for MDX3i) SPRAY (2 l�/Min)

CONZ8339116

1

5

Electronics complete with Click-plus, mains operated

CONZ8139780

1

6

Electronics complete with Click, mains operated

CONZ8139781

1

7

Cover cap for rotary slide (chrome-plated)

CONZ8939117

1

8

Solenoid valve cartridge 6 V

CONO320000

1

9

Pipe grommet

CONZ8939003

2

10

Lumino L10c rotary slide with lever, O-Rings and screw

CONZ8339783

1

11

Temperature lever for lino including screw

CONZ8139751

1

12

Fixation screw for plug-in hoses

CONZ8939136

1

13

Flexible hose with plug connection EU 350mm

CONZ8939134

1

14

Cable extension 30cm

CONZ8939126

1

15

Lumino+ MDX3i

CONZ8339780

1

16

Lumino+ MDX7i

CONZ8339781

1

17

Dirt strainer

CONZ8939121

2

18

Fitting attachment complete

CONZ8939104

1

19

Battery holder

CONZ8139608

1

20

Retaining part battery holder on valve

CONZ8139611

1

21

Plug-in power supply unit 230VAC/6VDC

CONZ8955032

1

*Pos 19 only as tool to be able to assemble and disassemble Pos 20
