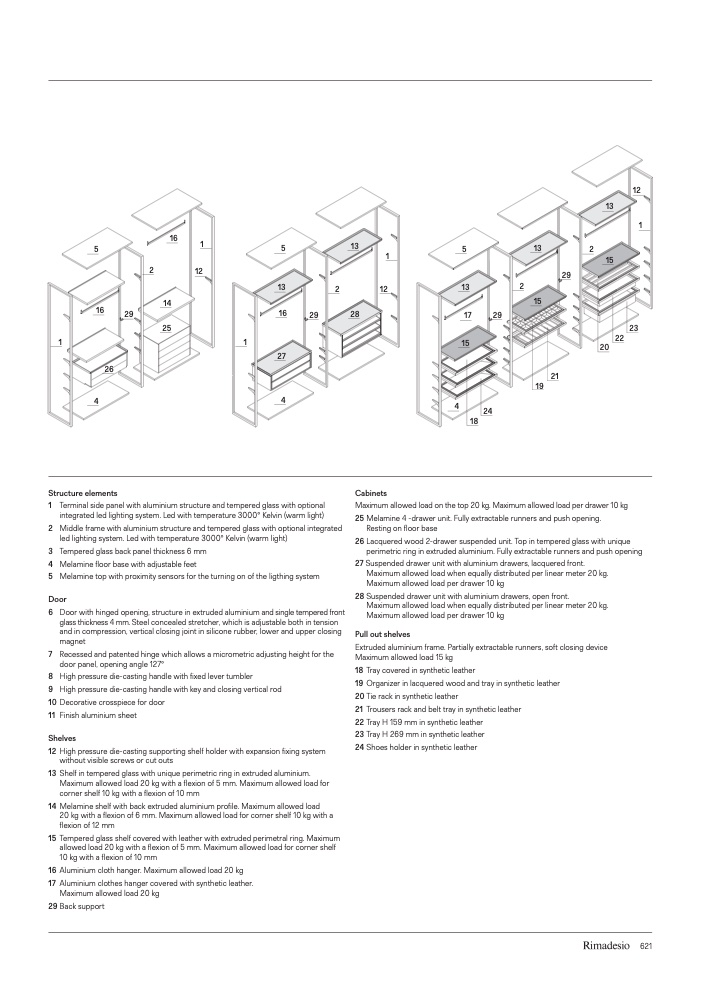

Structure elements

1 Terminal side panel with aluminium structure and tempered glass with optional

integrated led lighting system. Led with temperature 3000° Kelvin (warm light)

2 Middle frame with aluminium structure and tempered glass with optional integrated

led lighting system. Led with temperature 3000° Kelvin (warm light)

3 Tempered glass back panel thickness 6 mm

4 Melamine floor base with adjustable feet

5 Melamine top with proximity sensors for the turning on of the ligthing system

Door

6 Door with hinged opening, structure in extruded aluminium and single tempered front

glass thickness 4 mm. Steel concealed stretcher, which is adjustable both in tension

and in compression, vertical closing joint in silicone rubber, lower and upper closing

magnet

7 Recessed and patented hinge which allows a micrometric adjusting height for the

door panel, opening angle 127°

8 High pressure die-casting handle with fixed lever tumbler

9 High pressure die-casting handle with key and closing vertical rod

10 Decorative crosspiece for door

11 Finish aluminium sheet

Shelves

12 High pressure die-casting supporting shelf holder with expansion fixing system

without visible screws or cut outs

13 Shelf in tempered glass with unique perimetric ring in extruded aluminium.

Maximum allowed load 20 kg with a flexion of 5 mm. Maximum allowed load for

corner shelf 10 kg with a flexion of 10 mm

14 Melamine shelf with back extruded aluminium profile. Maximum allowed load

20 kg with a flexion of 6 mm. Maximum allowed load for corner shelf 10 kg with a

flexion of 12 mm

15 Tempered glass shelf covered with leather with extruded perimetral ring. Maximum

allowed load 20 kg with a flexion of 5 mm. Maximum allowed load for corner shelf

10kgwithaflexionof10mm

16 Aluminium cloth hanger. Maximum allowed load 20 kg

17 Aluminium clothes hanger covered with synthetic leather.

Maximum allowed load 20 kg

4

18

24

29 Back support

Cabinets

Maximum allowed load on the top 20 kg. Maximum allowed load per drawer 10 kg

25 Melamine 4 -drawer unit. Fully extractable runners and push opening.

Resting on floor base

26 Lacquered wood 2-drawer suspended unit. Top in tempered glass with unique

perimetric ring in extruded aluminium. Fully extractable runners and push opening

27 Suspended drawer unit with aluminium drawers, lacquered front.

Maximum allowed load when equally distributed per linear meter 20 kg.

Maximum allowed load per drawer 10 kg

28 Suspended drawer unit with aluminium drawers, open front.

Maximum allowed load when equally distributed per linear meter 20 kg.

Maximum allowed load per drawer 10 kg

Pull out shelves

Extruded aluminium frame. Partially extractable runners, soft closing device

Maximum allowed load 15 kg

18 Tray covered in synthetic leather

19 Organizer in lacquered wood and tray in synthetic leather

20 Tie rack in synthetic leather

21 Trousers rack and belt tray in synthetic leather

22 Tray H 159 mm in synthetic leather

23 Tray H 269 mm in synthetic leather

24 Shoes holder in synthetic leather

12

13

22

20

1
