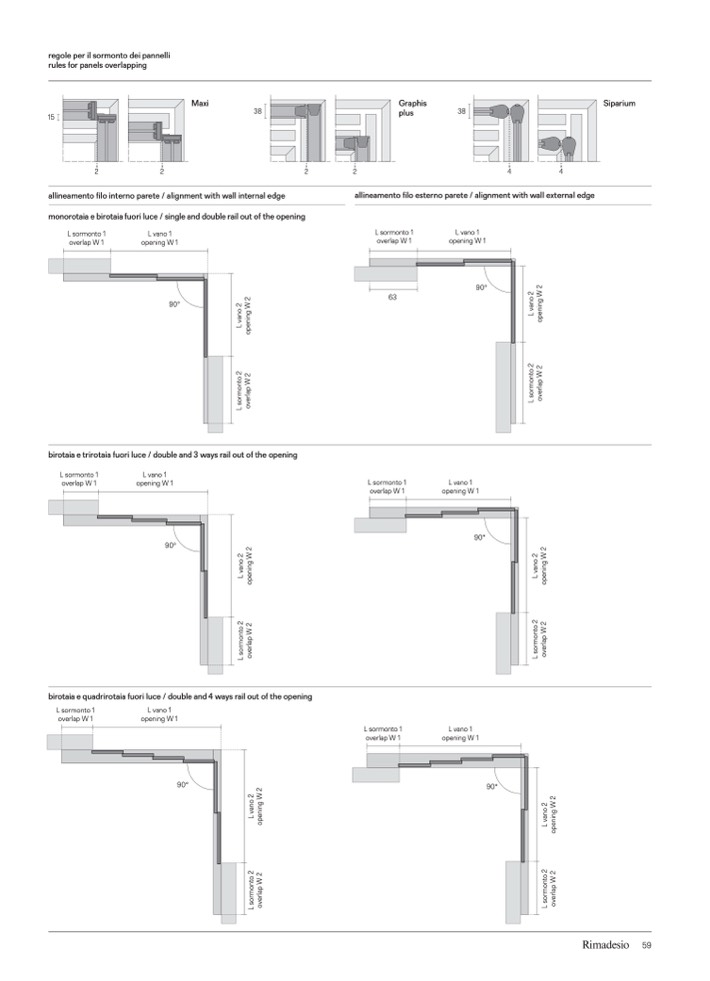

regole per il sormonto dei pannelli
rules for panels overlapping
15
Maxi
Graphis
Siparium
38
plus
38
2
2
2
2
4
4
allineamento filo interno parete / alignment with wall internal edge
monorotaia e birotaia fuori luce / single and double rail out of the opening
allineamento filo esterno parete / alignment with wall external edge
L sormonto 1
overlap W 1
L vano 1
opening W 1
90°
L sormonto 1
overlap W 1
63
L vano 1
opening W 1
90°
birotaia e trirotaia fuori luce / double and 3 ways rail out of the opening
L sormonto 1
L vano 1
overlap W 1
opening W 1
90°
birotaia e quadrirotaia fuori luce / double and 4 ways rail out of the opening
L sormonto 1
overlap W 1
L vano 1
opening W 1
90°
L sormonto 1
overlap W 1
L vano 1
opening W 1
90°
L sormonto 1
overlap W 1
L vano 1
opening W 1
90°
