15
17
4
4
13
14
4
13
22
24
25
31
15
14
14
17
13
18
32
2
2
23
32
32
30
27
28
29
19
19
19

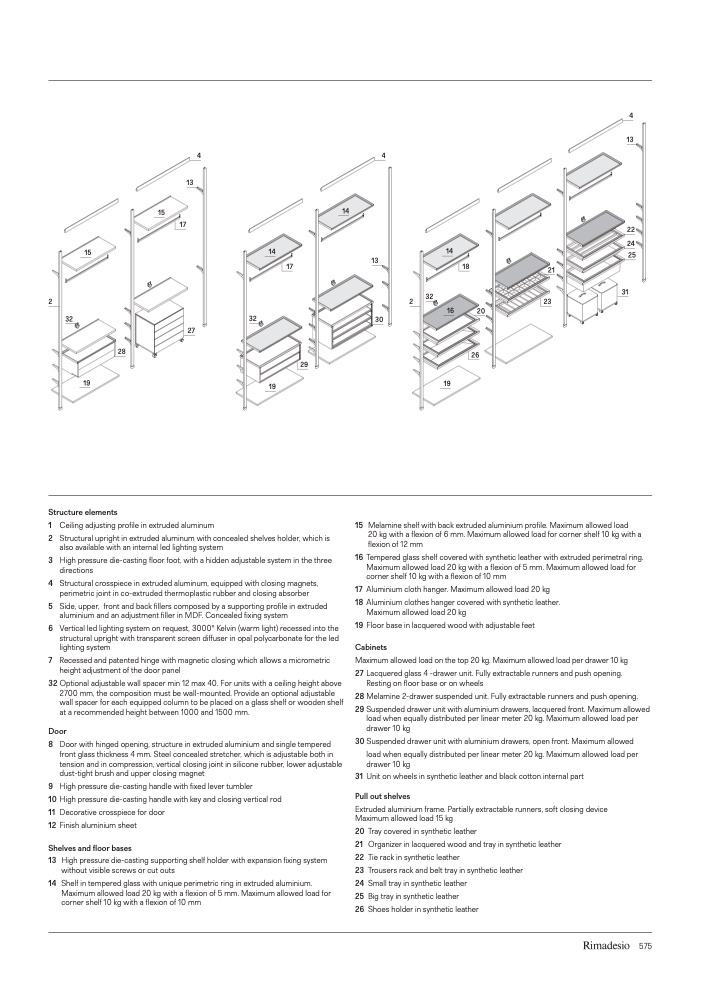

Structure elements
1 Ceiling adjusting profile in extruded aluminum
2 Structural upright in extruded aluminum with concealed shelves holder, which is
also available with an internal led lighting system
3 High pressure die-casting floor foot, with a hidden adjustable system in the three
directions
4 Structural crosspiece in extruded aluminum, equipped with closing magnets,
perimetric joint in co-extruded thermoplastic rubber and closing absorber
5 Side, upper, front and back fillers composed by a supporting profile in extruded
aluminium and an adjustment filler in MDF. Concealed fixing system
6 Vertical led lighting system on request, 3000° Kelvin (warm light) recessed into the
structural upright with transparent screen di
ffuser in opal polycarbonate for the led
lighting system
7 Recessed and patented hinge with magnetic closing which allows a micrometric
height adjustment of the door panel
32 Optional adjustable wall spacer min 12 max 40. For units with a ceiling height above
2700 mm, the composition must be wall-mounted. Provide an optional adjustable
wall spacer for each equipped column to be placed on a glass shelf or wooden shelf
at a recommended height between 1000 and 1500 mm.
Door
8 Door with hinged opening, structure in extruded aluminium and single tempered
front glass thickness 4 mm. Steel concealed stretcher, which is adjustable both in
tension and in compression, vertical closing joint in silicone rubber, lower adjustable
dust-tight brush and upper closing magnet
9 High pressure die-casting handle with fixed lever tumbler
10 High pressure die-casting handle with key and closing vertical rod
11 Decorativecrosspiecefordoor
12 Finish aluminium sheet
Shelves and floor bases
13 High pressure die-casting supporting shelf holder with expansion fixing system
without visible screws or cut outs
14 Shelf in tempered glass with unique perimetric ring in extruded aluminium.
Maximum allowed load 20 kg with a flexion of 5 mm. Maximum allowed load for
corner shelf 10 kg with a flexion of 10 mm
15 Melamine shelf with back extruded aluminium profile. Maximum allowed load
20 kg with a flexion of 6 mm. Maximum allowed load for corner shelf 10 kg with a
flexion of 12 mm
16 Tempered glass shelf covered with synthetic leather with extruded perimetral ring.
Maximum allowed load 20 kg with a flexion of 5 mm. Maximum allowed load for
corner shelf 10 kg with a flexion of 10 mm
17 Aluminium cloth hanger. Maximum allowed load 20 kg
18 Aluminium clothes hanger covered with synthetic leather.
Maximum allowed load 20 kg
19 Floor base in lacquered wood with adjustable feet
Cabinets
Maximum allowed load on the top 20 kg. Maximum allowed load per drawer 10 kg
27 Lacquered glass 4 -drawer unit. Fully extractable runners and push opening.
Resting on floor base or on wheels
28 Melamine 2-drawer suspended unit. Fully extractable runners and push opening.
29 Suspended drawer unit with aluminium drawers, lacquered front. Maximum allowed
load when equally distributed per linear meter 20 kg. Maximum allowed load per
drawer 10 kg
30 Suspended drawer unit with aluminium drawers, open front. Maximum allowed
load when equally distributed per linear meter 20 kg. Maximum allowed load per
drawer 10 kg
31 Unit on wheels in synthetic leather and black cotton internal part
Pull out shelves
Extruded aluminium frame. Partially extractable runners, soft closing device
Maximum allowed load 15 kg
20 Tray covered in synthetic leather
21 Organizerinlacqueredwoodandtrayinsyntheticleather
22 Tie rack in synthetic leather
23 Trousers rack and belt tray in synthetic leather
24 Small tray in synthetic leather
25 Big tray in synthetic leather
26 Shoes holder in synthetic leather
16
20
26
21
575
