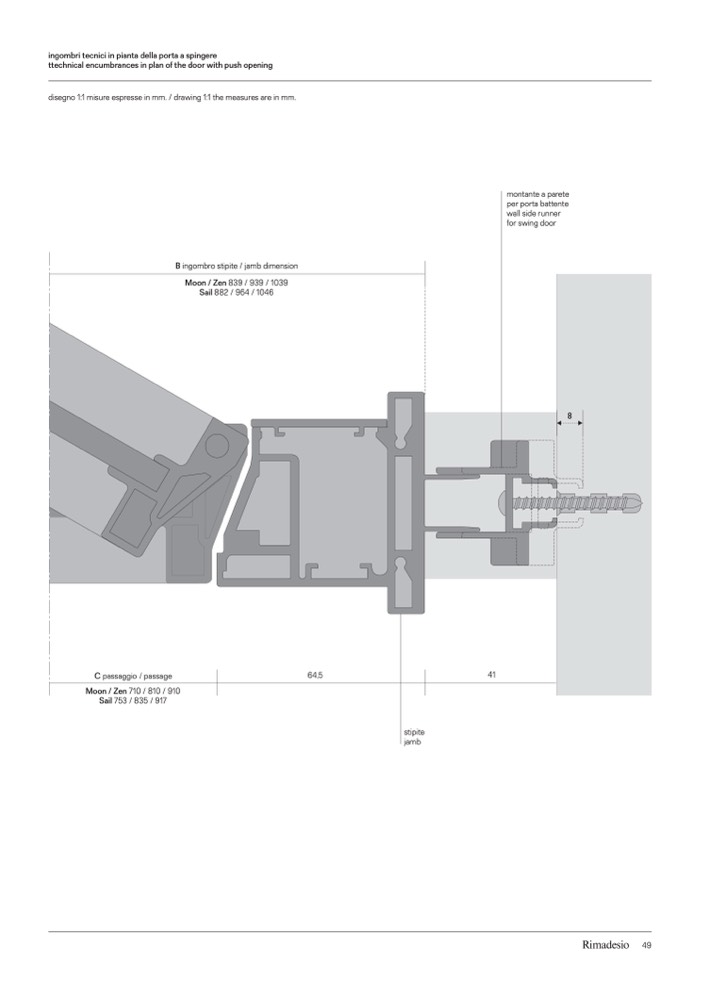

ingombri tecnici in pianta della porta a spingere

ttechnical encumbrances in plan of the door with push opening

disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.

montante a parete

per porta battente

wall side runner

for swing door

B ingombro stipite / jamb dimension

Moon / Zen 839 / 939 / 1039

Sail 882 / 964 / 1046

8

C passaggio / passage

Moon / Zen 710 / 810 / 910

Sail753/835/917

64,5

41

stipite

jamb

49
