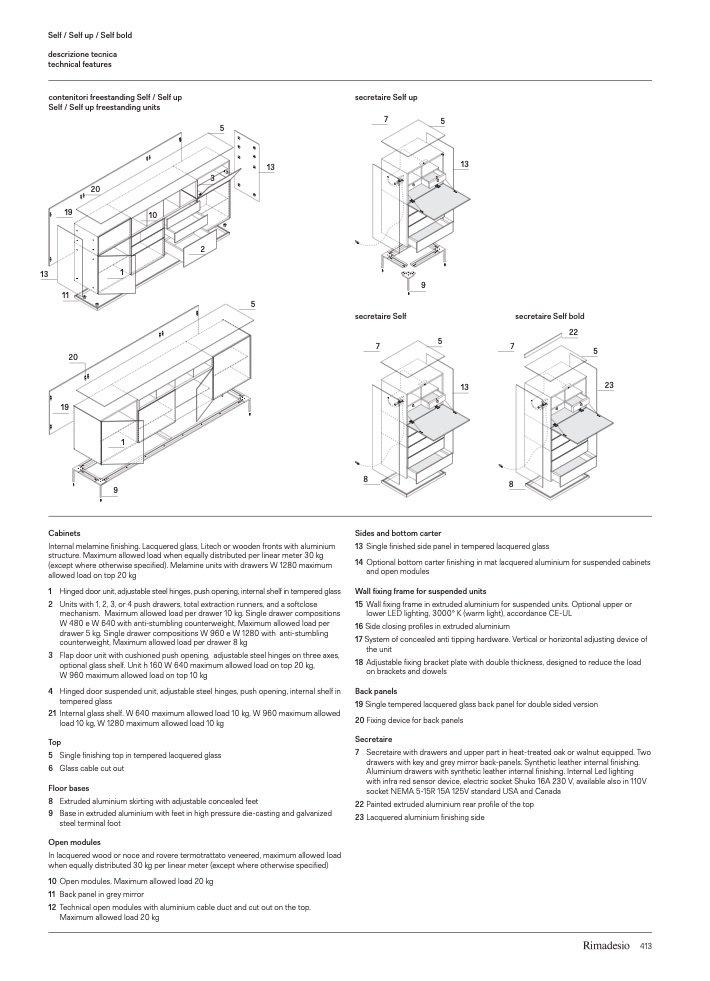

Self / Self up / Self bold

descrizione tecnica

technical features

contenitori freestanding Self / Self up

Self / Self up freestanding units

secretaire Self up

7

20

19

13

1

11

10

20

19

Cabinets

7

5

7

13

22

5

23

1

9

8

8

Internal melamine finishing. Lacquered glass, Litech or wooden fronts with aluminium

structure. Maximum allowed load when equally distributed per linear meter 30 kg

(except where otherwise specified). Melamine units with drawers W 1280 maximum

allowed load on top 20 kg

1 Hinged door unit, adjustable steel hinges, push opening, internal shelf in tempered glass

2 Units with 1, 2, 3, or 4 push drawers, total extraction runners, and a softclose

mechanism. Maximum allowed load per drawer 10 kg. Single drawer compositions

W 480 e W 640 with anti-stumbling counterweight, Maximum allowed load per

drawer 5 kg. Single drawer compositions W 960 e W 1280 with anti-stumbling

counterweight, Maximum allowed load per drawer 8 kg

3 Flap door unit with cushioned push opening, adjustable steel hinges on three axes,

optional glass shelf. Unit h 160 W 640 maximum allowed load on top 20 kg,

W 960 maximum allowed load on top 10 kg

4 Hinged door suspended unit, adjustable steel hinges, push opening, internal shelf in

tempered glass

21 Internal glass shelf. W 640 maximum allowed load 10 kg, W 960 maximum allowed

load 10 kg, W 1280 maximum allowed load 10 kg

Top

5 Single finishing top in tempered lacquered glass

6 Glass cable cut out

Floor bases

8 Extruded aluminium skirting with adjustable concealed feet

9 Base in extruded aluminium with feet in high pressure die-casting and galvanized

steel terminal foot

Open modules

In lacquered wood or noce and rovere termotrattato veneered, maximum allowed load

when equally distributed 30 kg per linear meter (except where otherwise specified)

10 Open modules. Maximum allowed load 20 kg

11 Backpanelingreymirror

12 Technical open modules with aluminium cable duct and cut out on the top.

Maximum allowed load 20 kg

Sides and bottom carter

13 Single finished side panel in tempered lacquered glass

5

3

2

13

5

5

13

secretaire Self

secretaire Self bold

9

14 Optional bottom carter finishing in mat lacquered aluminium for suspended cabinets

and open modules

Wall fixing frame for suspended units

15 Wall fixing frame in extruded aluminium for suspended units. Optional upper or

lower LED lighting, 3000° K (warm light), accordance CE-UL

16 Side closing profiles in extruded aluminium

17 System of concealed anti tipping hardware. Vertical or horizontal adjusting device of

the unit

18 Adjustable fixing bracket plate with double thickness, designed to reduce the load

on brackets and dowels

Back panels

19 Single tempered lacquered glass back panel for double sided version

20 Fixing device for back panels

Secretaire

7 Secretaire with drawers and upper part in heat-treated oak or walnut equipped. Two

drawers with key and grey mirror back-panels. Synthetic leather internal finishing.

Aluminium drawers with synthetic leather internal finishing. Internal Led lighting

with infra red sensor device, electric socket Shuko 16A 230 V, available also in 110V

socket NEMA 5-15R 15A 125V standard USA and Canada

22 Painted extruded aluminium rear profile of the top

23 Lacquered aluminium finishing side
