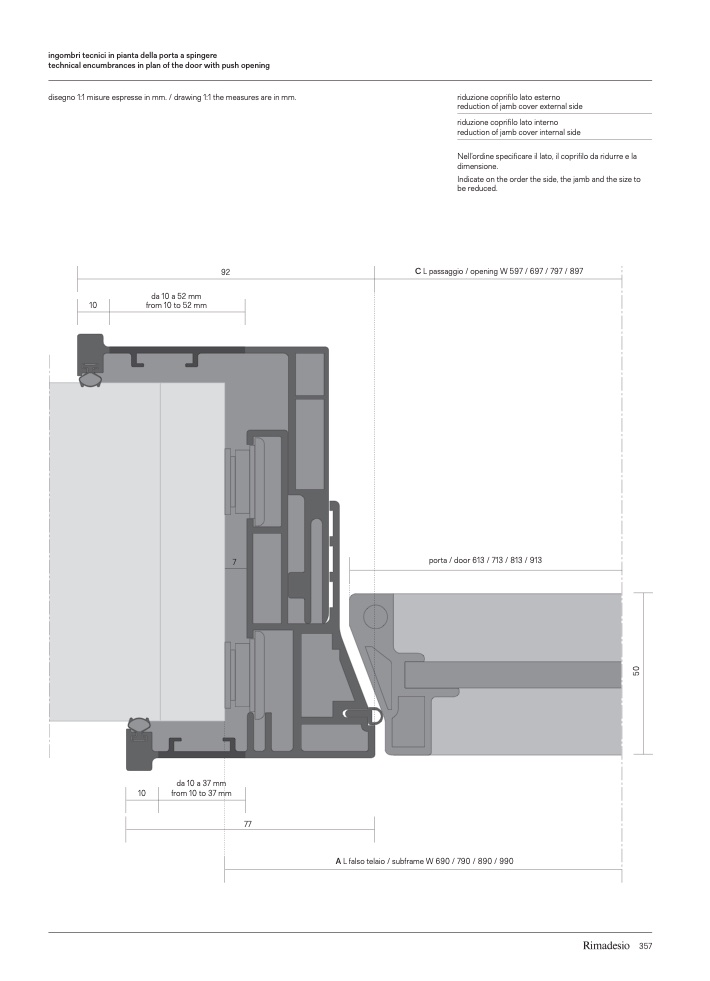

ingombri tecnici in pianta della porta a spingere

technical encumbrances in plan of the door with push opening

disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.

riduzione coprifilo lato esterno

reduction of jamb cover external side

riduzione coprifilo lato interno

reduction of jamb cover internal side

Nell’ordine specificare il lato, il coprifilo da ridurre e la

dimensione.

Indicate on the order the side, the jamb and the size to

be reduced.

92

CLpassaggio/openingW597/697/797/897

porta/door613/713/813/913

10

da10a52mm

from 10 to 52 mm

7

da10a37mm

10

from 10 to 37 mm

77

ALfalsotelaio/subframeW690/790/890/990

357

5

0
