Zen frame

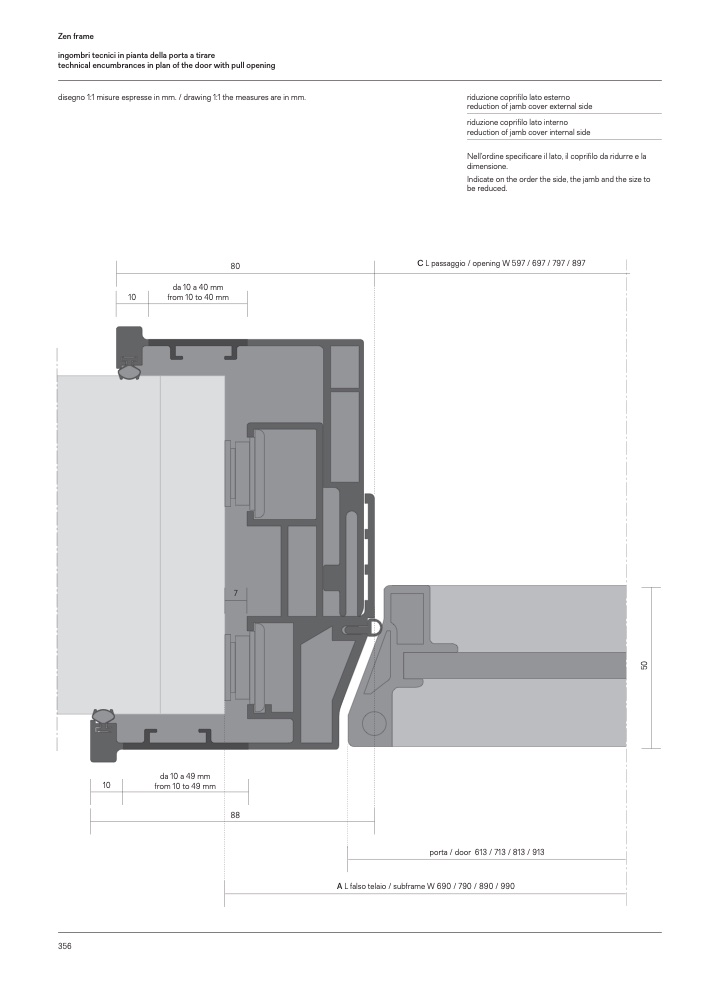

ingombri tecnici in pianta della porta a tirare

technical encumbrances in plan of the door with pull opening

disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.

riduzione coprifilo lato esterno

reduction of jamb cover external side

riduzione coprifilo lato interno

reduction of jamb cover internal side

Nell’ordine specificare il lato, il coprifilo da ridurre e la

dimensione.

Indicate on the order the side, the jamb and the size to

be reduced.

CLpassaggio/openingW597/697/797/897

80

10

da10a40mm

from 10 to 40 mm

ALfalsotelaio/subframeW690/790/890/990

7

10

da10a49mm

from 10 to 49 mm

356

88

porta/door 613/713/813/913

5

0
