Spin / Even

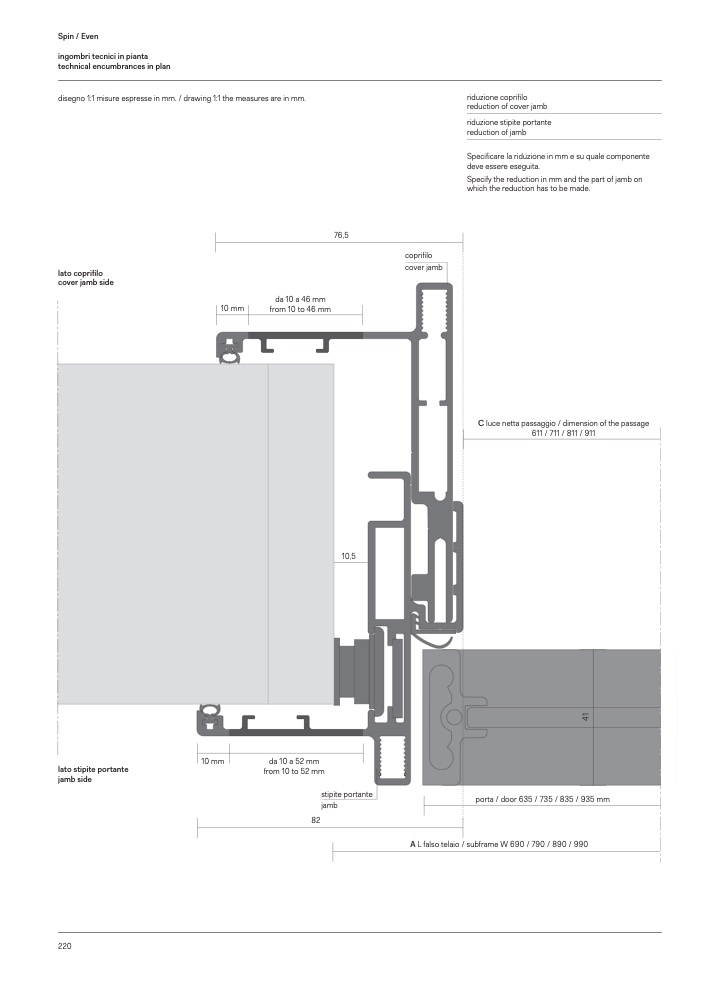

ingombri tecnici in pianta

technical encumbrances in plan

disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.

riduzione coprifilo

reduction of cover jamb

riduzione stipite portante

reduction of jamb

Specificare la riduzione in mm e su quale componente

deve essere eseguita.

Specify the reduction in mm and the part of jamb on

which the reduction has to be made.

76,5

lato coprifilo

cover jamb side

coprifilo

cover jamb

10 mm

da10a46mm

from 10 to 46 mm

C luce netta passaggio / dimension of the passage

611/711/811/911

10,5

porta/door635/735/835/935mm

lato stipite portante

jamb side

10mm

da10a52mm

from 10 to 52 mm

stipite portante

jamb

82

ALfalsotelaio/subframeW690/790/890/990

220

4
