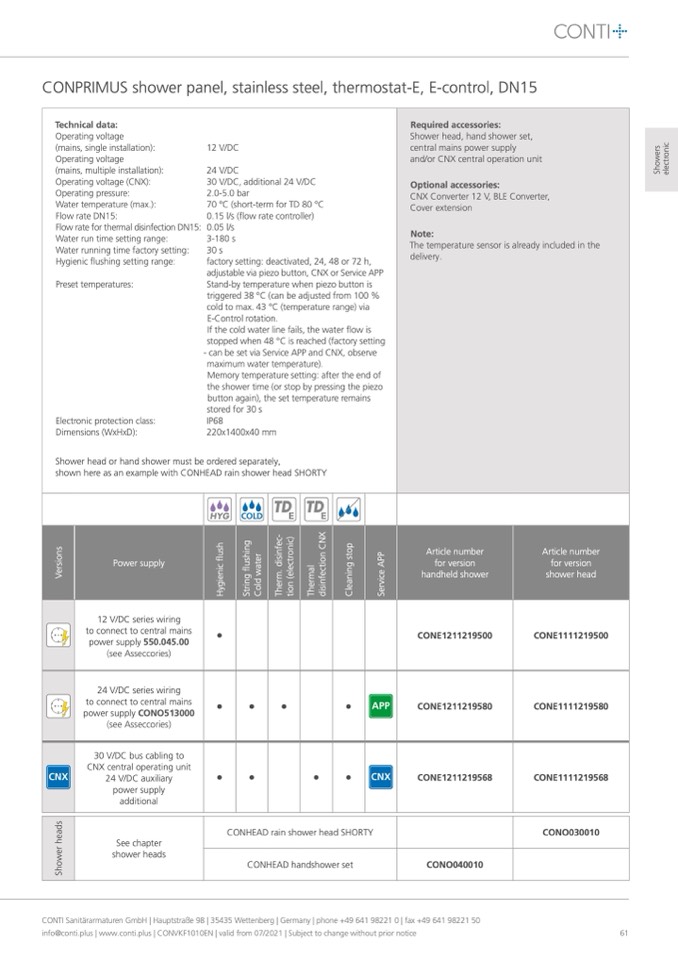

CONPRIMUS shower panel, stainless steel, thermostat-E, E-control, DN15

Technical data:

Operating voltage

(mains, single installation):

Operating voltage

(mains, multiple installation):

Operating voltage (CNX):

Operating pressure:

Water temperature (max.):

Flow rate DN15:

FlowrateforthermaldisinfectionDN15:

Water run time setting range:

Water running time factory setting:

Hygienic flushing setting range:

Preset temperatures:

Electronic protection class:

Dimensions (WxHxD):

12 V/DC

24 V/DC

30 V/DC, additional 24 V/DC

2.0-5.0 bar

70 °C (short-term for TD 80 °C

0.15 l/s (flow rate controller)

0.05l/s

3-180 s

30 s

factory setting: deactivated, 24, 48 or 72 h,

adjustable via piezo button, CNX or Service APP

Stand-by temperature when piezo button is

triggered 38 °C (can be adjusted from 100 %

cold to max. 43 °C (temperature range) via

E-Control rotation.

If the cold water line fails, the water flow is

stopped when 48 °C is reached (factory setting

- can be set via Service APP and CNX, observe

maximum water temperature).

Memory temperature setting: after the end of

the shower time (or stop by pressing the piezo

button again), the set temperature remains

stored for 30 s

IP68

220x1400x40 mm

Shower head or hand shower must be ordered separately,

shown here as an example with CONHEAD rain shower head SHORTY

Required accessories:

Shower head, hand shower set,

central mains power supply

and/or CNX central operation unit

Optional accessories:

CNX Converter 12 V, BLE Converter,

Cover extension

Note:

The temperature sensor is already included in the

delivery.

Power supply

Article number

for version

handheld shower

Article number

for version

shower head

12 V/DC series wiring

to connect to central mains

power supply 550.045.00

(see Asseccories)

•

CONE1211219500

CONE1111219500

24 V/DC series wiring

to connect to central mains

power supply CONO513000

(see Asseccories)

•

•

•

•

CONE1211219580

CONE1111219580

30 V/DC bus cabling to

CNX central operating unit

24 V/DC auxiliary

power supply

additional

•

•

•

•

CONE1211219568

CONE1111219568

See chapter

shower heads

CONHEAD rain shower head SHORTY

CONO030010

CONHEAD handshower set

CONO040010

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
