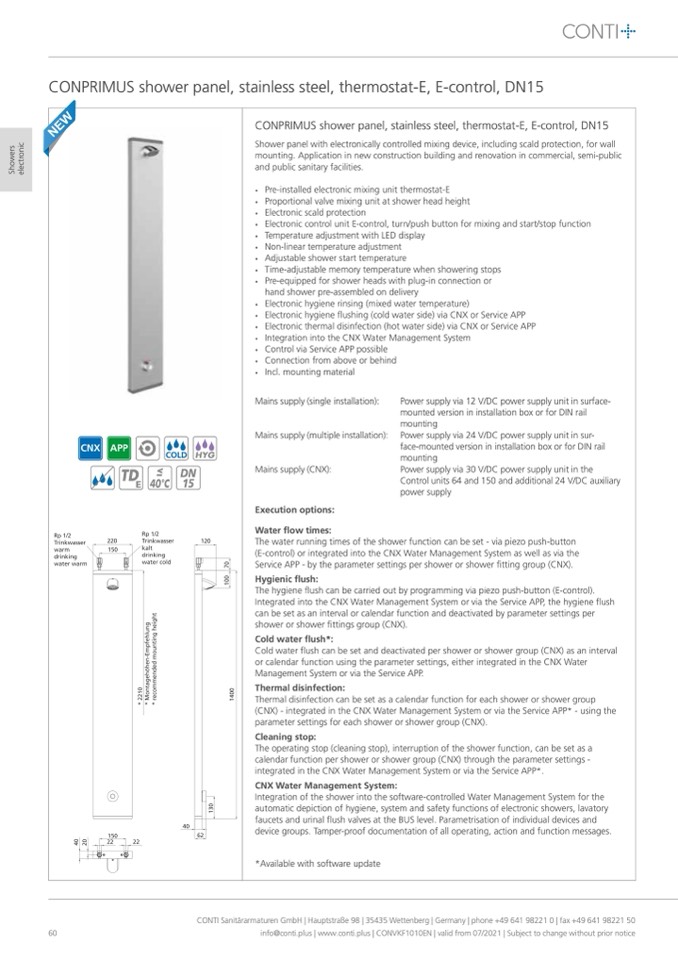

CONPRIMUS shower panel, stainless steel, thermostat-E, E-control, DN15

CONPRIMUS shower panel, stainless steel, thermostat-E, E-control, DN15

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

60

The water running times of the shower function can be set - via piezo push-button

(E-control) or integrated into the CNX Water Management System as well as via the

Service APP - by the parameter settings per shower or shower fitting group (CNX).

Hygienic flush:

The hygiene flush can be carried out by programming via piezo push-button (E-control).

Integrated into the CNX Water Management System or via the Service APP, the hygiene flush

can be set as an interval or calendar function and deactivated by parameter settings per

shower or shower fittings group (CNX).

Cold water flush*:

Cold water flush can be set and deactivated per shower or shower group (CNX) as an interval

or calendar function using the parameter settings, either integrated in the CNX Water

Management System or via the Service APP.

Thermal disinfection:

Thermal disinfection can be set as a calendar function for each shower or shower group

(CNX) - integrated in the CNX Water Management System or via the Service APP* - using the

parameter settings for each shower or shower group (CNX).

Cleaning stop:

The operating stop (cleaning stop), interruption of the shower function, can be set as a

calendar function per shower or shower group (CNX) through the parameter settings -

integrated in the CNX Water Management System or via the Service APP*.

CNX Water Management System:

Integration of the shower into the software-controlled Water Management System for the

automatic depiction of hygiene, system and safety functions of electronic showers, lavatory

faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and

device groups. Tamper-proof documentation of all operating, action and function messages.

*Available with software update

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Shower panel with electronically controlled mixing device, including scald protection, for wall

mounting. Application in new construction building and renovation in commercial, semi-public

and public sanitary facilities.

•

Pre-installed electronic mixing unit thermostat-E

•

Proportional valve mixing unit at shower head height

•

Electronic scald protection

•

Electronic control unit E-control, turn/push button for mixing and start/stop function

•

Temperature adjustment with LED display

•

Non-linear temperature adjustment

•

Adjustable shower start temperature

•

Time-adjustable memory temperature when showering stops

•

Pre-equipped for shower heads with plug-in connection or

hand shower pre-assembled on delivery

•

Electronic hygiene rinsing (mixed water temperature)

•

Electronic hygiene flushing (cold water side) via CNX or Service APP

•

Electronic thermal disinfection (hot water side) via CNX or Service APP

•

Integration into the CNX Water Management System

•

Control via Service APP possible

•

Connection from above or behind

•

Incl. mounting material

Mains supply (single installation):

Mains supply (multiple installation):

Mains supply (CNX):

Execution options:

Water flow times:

Power supply via 12 V/DC power supply unit in surface-

mounted version in installation box or for DIN rail

mounting

Power supply via 24 V/DC power supply unit in sur-

face-mounted version in installation box or for DIN rail

mounting

Power supply via 30 V/DC power supply unit in the

Control units 64 and 150 and additional 24 V/DC auxiliary

power supply
