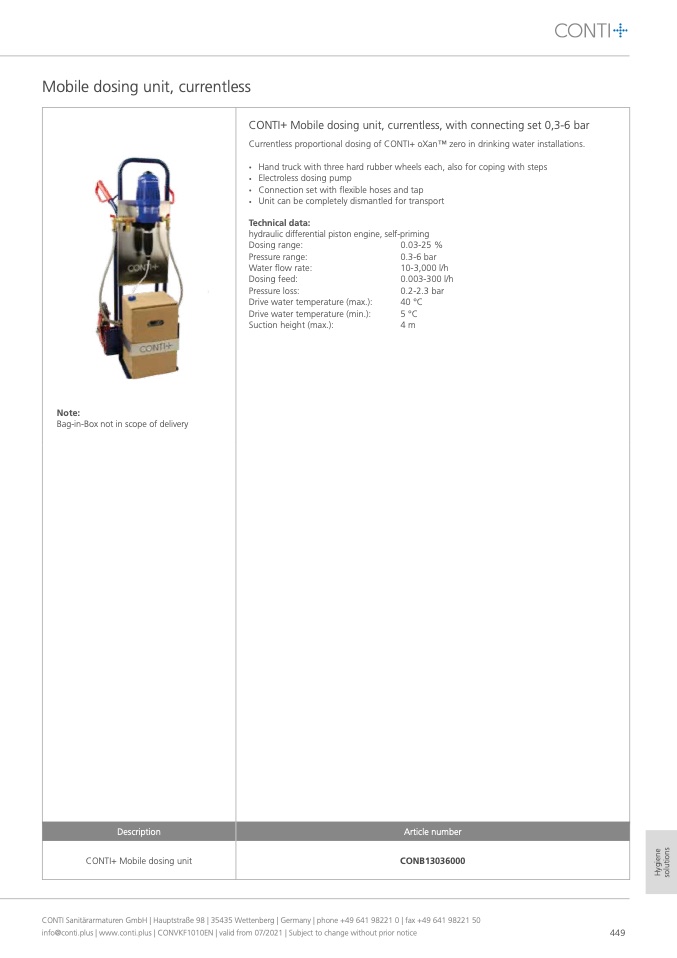

Mobile dosing unit, currentless

Note:

Bag-in-Box not in scope of delivery

CONTI+ Mobile dosing unit, currentless, with connecting set 0,3-6 bar

Currentless proportional dosing of CONTI+ oXanTM zero in drinking water installations.

•

Hand truck with three hard rubber wheels each, also for coping with steps

•

Electroless dosing pump

•

Connection set with flexible hoses and tap

•

Unit can be completely dismantled for transport

Technical data:

hydraulic differential piston engine, self-priming

Dosing range:

Pressure range:

Water flow rate:

Dosing feed:

Pressure loss:

Drive water temperature (max.):

Drive water temperature (min.):

Suction height (max.):

0.03-25 %

0.3-6 bar

10-3,000 l/h

0.003-300 l/h

0.2-2.3 bar

40 °C

5 °C

4 m

Description

Article number

CONTI+ Mobile dosing unit

CONB13036000
