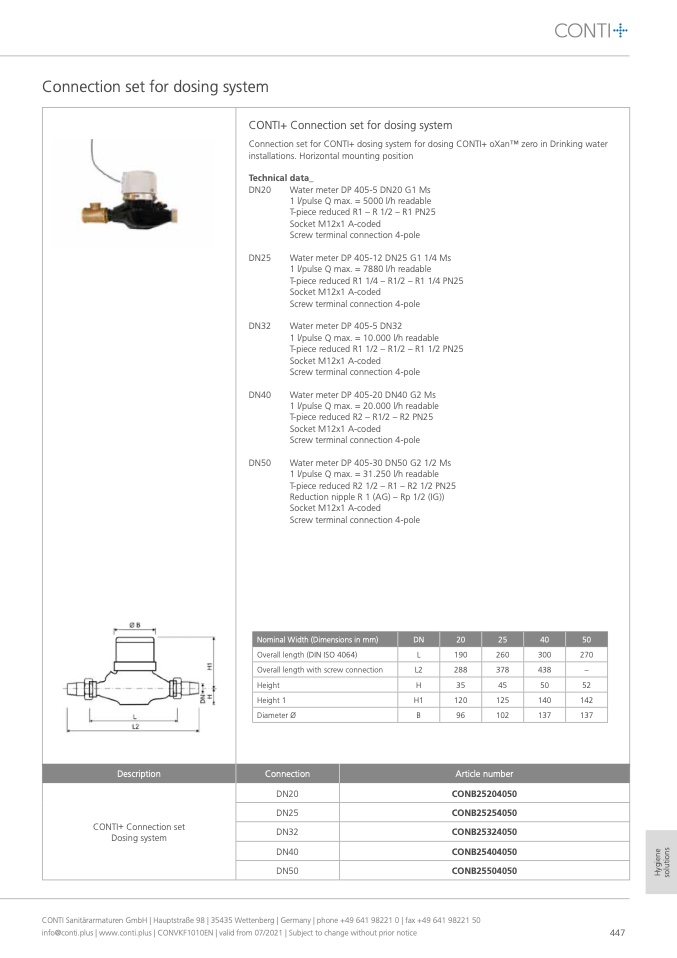

Connection set for dosing system

CONTI+ Connection set for dosing system

Connection set for CONTI+ dosing system for dosing CONTI+ oXanTM zero in Drinking water

installations. Horizontal mounting position

Technical data_

DN20

Water meter DP 405-5 DN20 G1 Ms

1 l/pulse Q max. = 5000 l/h readable

T-piece reduced R1 – R 1/2 – R1 PN25

Socket M12x1 A-coded

Screw terminal connection 4-pole

DN25

Water meter DP 405-12 DN25 G1 1/4 Ms

1 l/pulse Q max. = 7880 l/h readable

T-piece reduced R1 1/4 – R1/2 – R1 1/4 PN25

Socket M12x1 A-coded

Screw terminal connection 4-pole

DN32

Water meter DP 405-5 DN32

1 l/pulse Q max. = 10.000 l/h readable

T-piece reduced R1 1/2 – R1/2 – R1 1/2 PN25

Socket M12x1 A-coded

Screw terminal connection 4-pole

DN40

Water meter DP 405-20 DN40 G2 Ms

1 l/pulse Q max. = 20.000 l/h readable

T-piece reduced R2 – R1/2 – R2 PN25

Socket M12x1 A-coded

Screw terminal connection 4-pole

DN50

Water meter DP 405-30 DN50 G2 1/2 Ms

1 l/pulse Q max. = 31.250 l/h readable

T-piece reduced R2 1/2 – R1 – R2 1/2 PN25

Reduction nipple R 1 (AG) – Rp 1/2 (IG))

Socket M12x1 A-coded

Screw terminal connection 4-pole

Nominal Width (Dimensions in mm)

DN

20

25

40

50

Overall length (DIN ISO 4064)

L

190

260

300

270

Overall length with screw connection

L2

288

378

438

–

Height

H

35

45

50

52

Height 1

H1

120

125

140

142

Diameter Ø

B

96

102

137

137

Description

Connection

Article number

CONTI+ Connection set

Dosing system

DN20

CONB25204050

DN25

CONB25254050

DN32

CONB25324050

DN40

CONB25404050

DN50

CONB25504050

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
