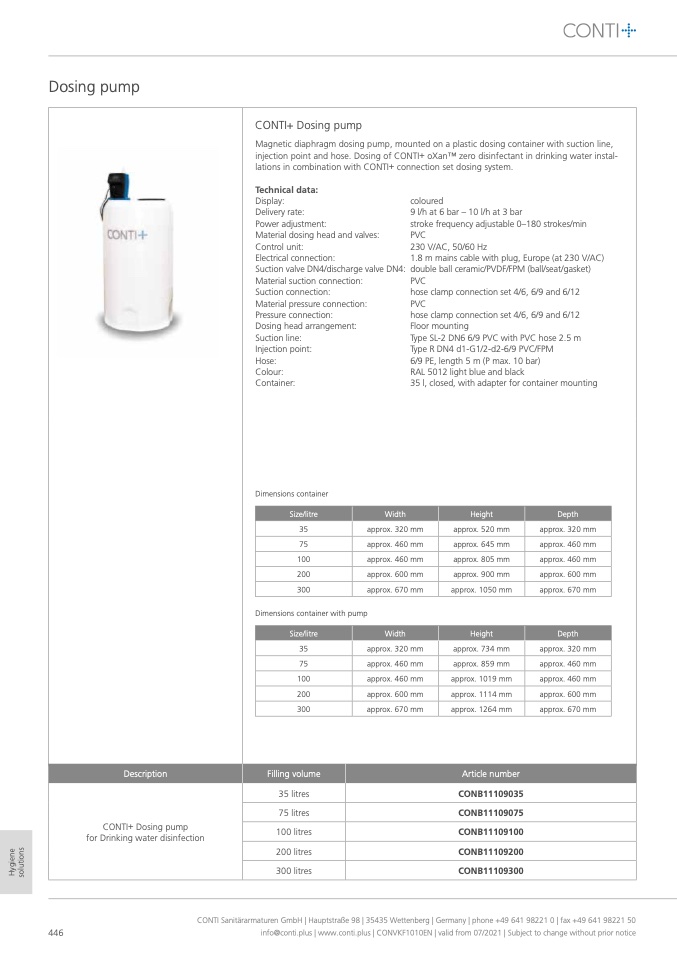

CONTI+ Dosing pump
Magnetic diaphragm dosing pump, mounted on a plastic dosing container with suction line,
injection point and hose. Dosing of CONTI+ oXanTM zero disinfectant in drinking water instal-
lations in combination with CONTI+ connection set dosing system.
Technical data:
Display:
Delivery rate:
Power adjustment:
Material dosing head and valves:
Control unit:
Electrical connection:
Suction valve DN4/discharge valve DN4:
Material suction connection:
Suction connection:
Material pressure connection:
Pressure connection:
Dosing head arrangement:
Suction line:
Injection point:
Hose:
Colour:
Container:
Dimensions container
Dimensions container with pump
coloured
9 l/h at 6 bar – 10 l/h at 3 bar
stroke frequency adjustable 0–180 strokes/min
PVC
230 V/AC, 50/60 Hz
1.8 m mains cable with plug, Europe (at 230 V/AC)
double ball ceramic/PVDF/FPM (ball/seat/gasket)
PVC
hose clamp connection set 4/6, 6/9 and 6/12
PVC
hose clamp connection set 4/6, 6/9 and 6/12
Floor mounting
Type SL-2 DN6 6/9 PVC with PVC hose 2.5 m
Type R DN4 d1-G1/2-d2-6/9 PVC/FPM
6/9 PE, length 5 m (P max. 10 bar)
RAL 5012 light blue and black
35 l, closed, with adapter for container mounting
Size/litre
Width
Height
Depth
35
approx. 320 mm
approx. 520 mm
approx. 320 mm
75
approx. 460 mm
approx. 645 mm
approx. 460 mm
100
approx. 460 mm
approx. 805 mm
approx. 460 mm
200
approx. 600 mm
approx. 900 mm
approx. 600 mm
300
approx. 670 mm
approx. 1050 mm
approx. 670 mm
Size/litre
Width
Height
Depth
35
approx. 320 mm
approx. 734 mm
approx. 320 mm
75
approx. 460 mm
approx. 859 mm
approx. 460 mm
100
approx. 460 mm
approx. 1019 mm
approx. 460 mm
200
approx. 600 mm
approx. 1114 mm
approx. 600 mm
300
approx. 670 mm
approx. 1264 mm
approx. 670 mm
Description
Filling volume
Article number
CONTI+ Dosing pump
for Drinking water disinfection
35 litres
CONB11109035
75 litres
CONB11109075
100 litres
CONB11109100
200 litres
CONB11109200
300 litres
CONB11109300
Dosing pump
