126

max.185

Ø18

Ø53

175

76.5

G1/2"

Ø50

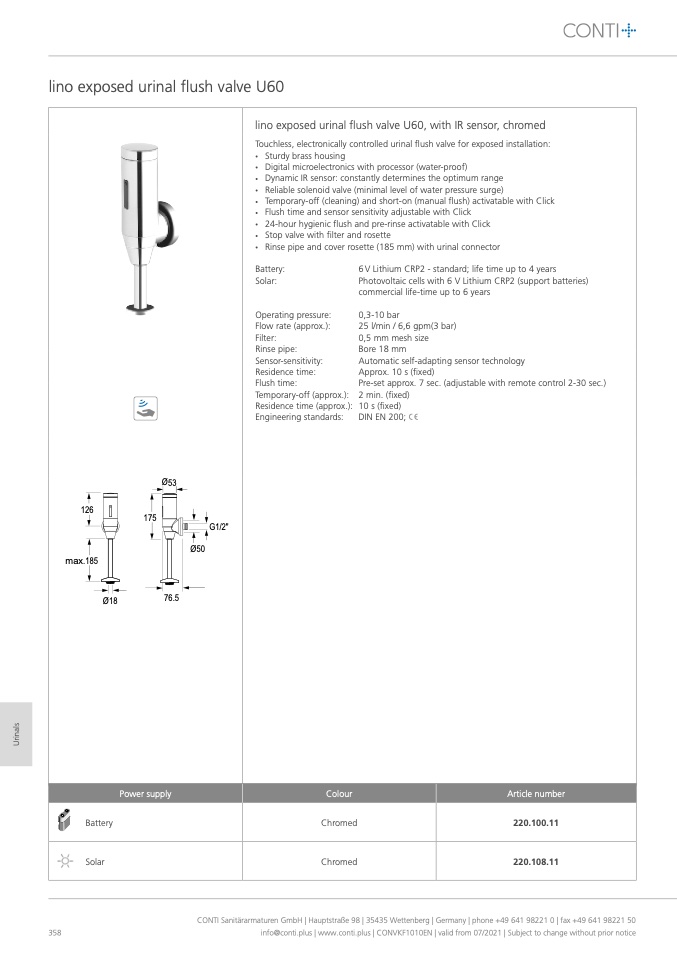

lino exposed urinal flush valve U60, with IR sensor, chromed

Touchless, electronically controlled urinal flush valve for exposed installation:

•

Sturdy brass housing

•

Digital microelectronics with processor (water-proof)

•

Dynamic IR sensor: constantly determines the optimum range

•

Reliable solenoid valve (minimal level of water pressure surge)

•

Temporary-off (cleaning) and short-on (manual flush) activatable with Click

•

Flush time and sensor sensitivity adjustable with Click

•

24-hour hygienic flush and pre-rinse activatable with Click

•

Stop valve with filter and rosette

•

Rinse pipe and cover rosette (185 mm) with urinal connector

Battery:

Solar:

Operating pressure:

Flow rate (approx.):

Filter:

Rinse pipe:

Sensor-sensitivity:

Residence time:

Flush time:

Temporary-off (approx.):

Residence time (approx.):

Engineering standards:

6 V Lithium CRP2 - standard; life time up to 4 years

Photovoltaic cells with 6 V Lithium CRP2 (support batteries)

commercial life-time up to 6 years

0,3-10 bar

25 l/min / 6,6 gpm(3 bar)

0,5 mm mesh size

Bore 18 mm

Automatic self-adapting sensor technology

Approx. 10 s (fixed)

Pre-set approx. 7 sec. (adjustable with remote control 2-30 sec.)

2 min. (fixed)

10 s (fixed)

DIN EN 200;

Power supply

Colour

Article number

Battery

Chromed

220.100.11

Solar

Chromed

220.108.11

lino exposed urinal flush valve U60
