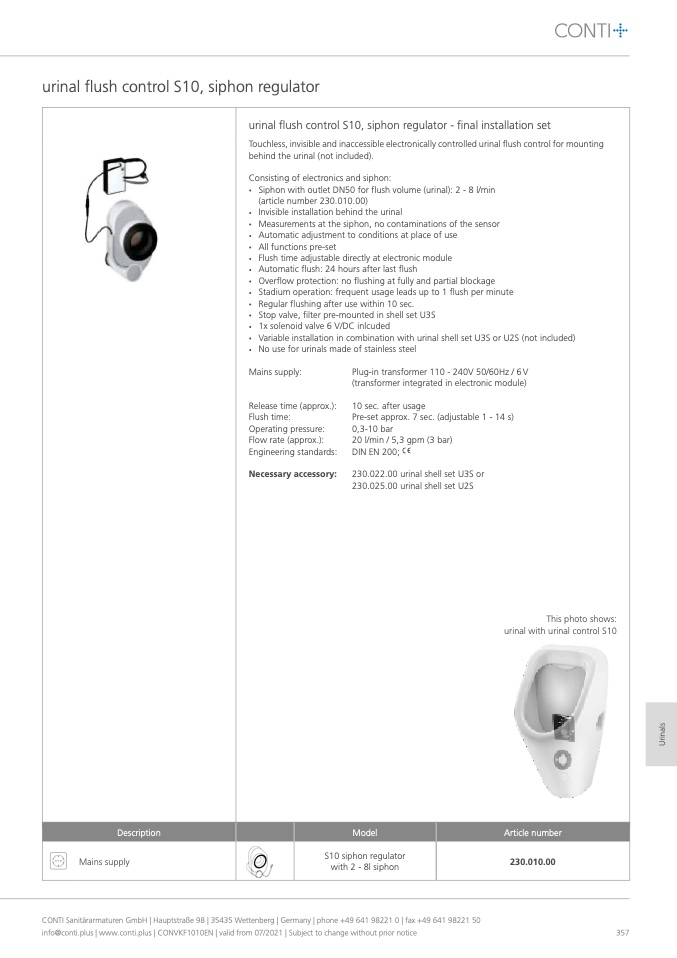

urinal flush control S10, siphon regulator

urinal flush control S10, siphon regulator - final installation set

Touchless, invisible and inaccessible electronically controlled urinal flush control for mounting

behind the urinal (not included).

Consisting of electronics and siphon:

•

Siphon with outlet DN50 for flush volume (urinal): 2 - 8 l/min

(article number 230.010.00)

•

Invisible installation behind the urinal

•

Measurements at the siphon, no contaminations of the sensor

•

Automatic adjustment to conditions at place of use

•

All functions pre-set

•

Flush time adjustable directly at electronic module

•

Automatic flush: 24 hours after last flush

•

Overflow protection: no flushing at fully and partial blockage

•

Stadium operation: frequent usage leads up to 1 flush per minute

•

Regular flushing after use within 10 sec.

•

Stop valve, filter pre-mounted in shell set U3S

•

1x solenoid valve 6 V/DC inlcuded

•

Variable installation in combination with urinal shell set U3S or U2S (not included)

•

No use for urinals made of stainless steel

Mains supply:

Release time (approx.):

Flush time:

Operating pressure:

Flow rate (approx.):

Engineering standards:

Necessary accessory:

Plug-in transformer 110 - 240V 50/60Hz / 6 V

(transformer integrated in electronic module)

10 sec. after usage

Pre-set approx. 7 sec. (adjustable 1 - 14 s)

0,3-10 bar

20 l/min / 5,3 gpm (3 bar)

DIN EN 200;

230.022.00 urinal shell set U3S or

230.025.00 urinal shell set U2S

This photo shows:

urinal with urinal control S10

Description

Model

Article number

Mains supply

S10 siphon regulator

230.010.00

with 2 - 8l siphon
