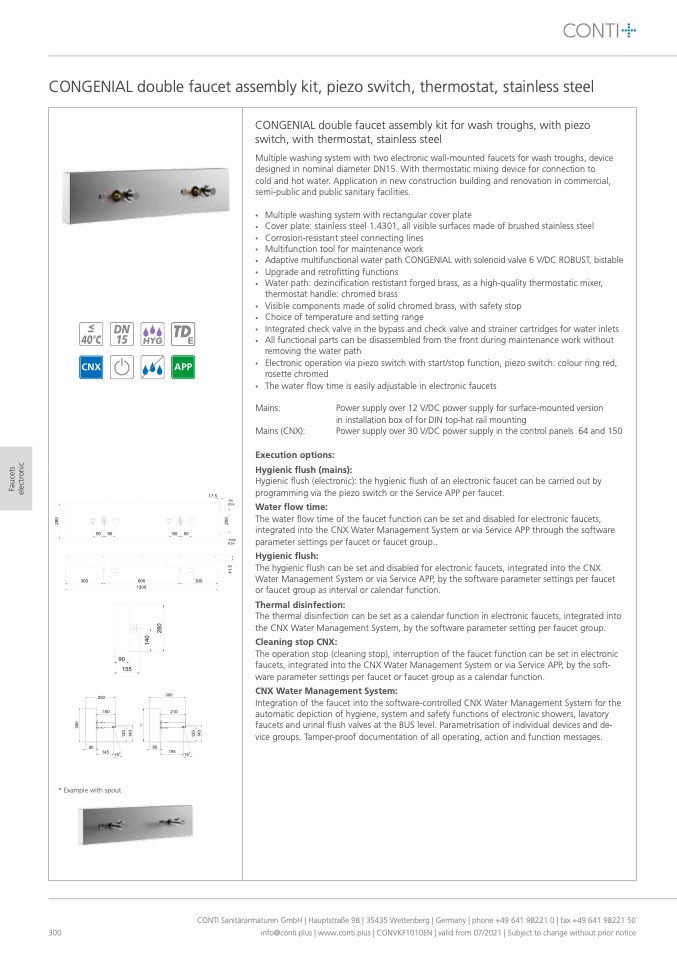

CONGENIAL double faucet assembly kit, piezo switch, thermostat, stainless steel

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

* Example with spout

300

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

CONGENIAL double faucet assembly kit for wash troughs, with piezo

switch, with thermostat, stainless steel

Multiple washing system with two electronic wall-mounted faucets for wash troughs, device

designed in nominal diameter DN15. With thermostatic mixing device for connection to

cold and hot water. Application in new construction building and renovation in commercial,

semi-public and public sanitary facilities.

•

Multiple washing system with rectangular cover plate

•

Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel

•

Corrosion-resistant steel connecting lines

•

Multifunction tool for maintenance work

•

Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable

•

Upgrade and retrofitting functions

•

Water path: dezincification restistant forged brass, as a high-quality thermostatic mixer,

thermostat handle: chromed brass

•

Visible components made of solid chromed brass, with safety stop

•

Choice of temperature and setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

All functional parts can be disassembled from the front during maintenance work without

removing the water path

•

Electronic operation via piezo switch with start/stop function, piezo switch: colour ring red,

rosette chromed

•

The water flow time is easily adjustable in electronic faucets

Mains:

Power supply over 12 V/DC power supply for surface-mounted version

in installation box of for DIN top-hat rail mounting

Mains (CNX):

Power supply over 30 V/DC power supply in the control panels 64 and 150

Execution options:

Hygienic flush (mains):

Hygienic flush (electronic): the hygienic flush of an electronic faucet can be carried out by

programming via the piezo switch or the Service APP per faucet.

Water flow time:

The water flow time of the faucet function can be set and disabled for electronic faucets,

integrated into the CNX Water Management System or via Service APP through the software

parameter settings per faucet or faucet group..

Hygienic flush:

The hygienic flush can be set and disabled for electronic faucets, integrated into the CNX

Water Management System or via Service APP, by the software parameter settings per faucet

or faucet group as interval or calendar function.

Thermal disinfection:

The thermal disinfection can be set as a calendar function in electronic faucets, integrated into

the CNX Water Management System, by the software parameter setting per faucet group.

Cleaning stop CNX:

The operation stop (cleaning stop), interruption of the faucet function can be set in electronic

faucets, integrated into the CNX Water Management System or via Service APP, by the soft-

ware parameter settings per faucet or faucet group as a calendar function.

CNX Water Management System:

Integration of the faucet into the software-controlled CNX Water Management System for the

automatic depiction of hygiene, system and safety functions of electronic showers, lavatory

faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and de-

vice groups. Tamper-proof documentation of all operating, action and function messages.
