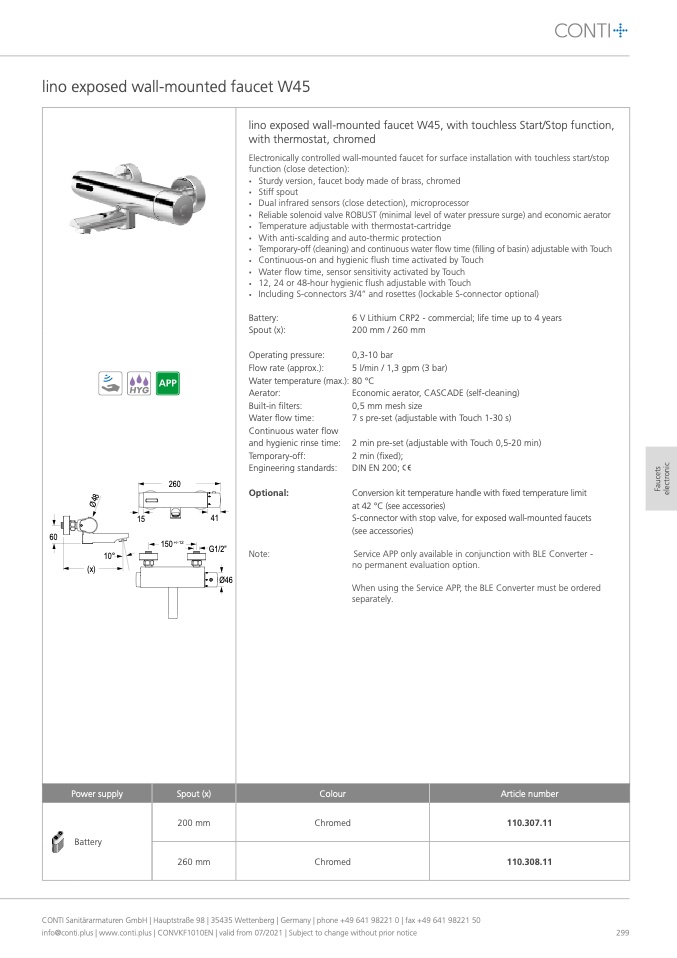

lino exposed wall-mounted faucet W45

60

150

+/-12

G1/2”

Ø46

10°

)x(

Power supply

Spout (x)

200 mm

260 mm

Colour

Chromed

Chromed

Article number

110.307.11

110.308.11

Battery

15

41

260

Optional:

Note:

lino exposed wall-mounted faucet W45, with touchless Start/Stop function,

with thermostat, chromed

Electronically controlled wall-mounted faucet for surface installation with touchless start/stop

function (close detection):

•

Sturdy version, faucet body made of brass, chromed

•

Stiff spout

•

Dual infrared sensors (close detection), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Temperature adjustable with thermostat-cartridge

•

With anti-scalding and auto-thermic protection

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch

•

Continuous-on and hygienic flush time activated by Touch

•

Water flow time, sensor sensitivity activated by Touch

•

12, 24 or 48-hour hygienic flush adjustable with Touch

•

Including S-connectors 3/4‘‘ and rosettes (lockable S-connector optional)

Battery:

Spout (x):

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Built-in filters:

Water flow time:

Continuous water flow

and hygienic rinse time:

Temporary-off:

Engineering standards:

6 V Lithium CRP2 - commercial; life time up to 4 years

200 mm / 260 mm

0,3-10 bar

5 l/min / 1,3 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

0,5 mm mesh size

7 s pre-set (adjustable with Touch 1-30 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed);

DIN EN 200;

Conversion kit temperature handle with fixed temperature limit

at 42 °C (see accessories)

S-connector with stop valve, for exposed wall-mounted faucets

(see accessories)

Service APP only available in conjunction with BLE Converter -

no permanent evaluation option.

When using the Service APP, the BLE Converter must be ordered

separately.

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

Ø48

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
