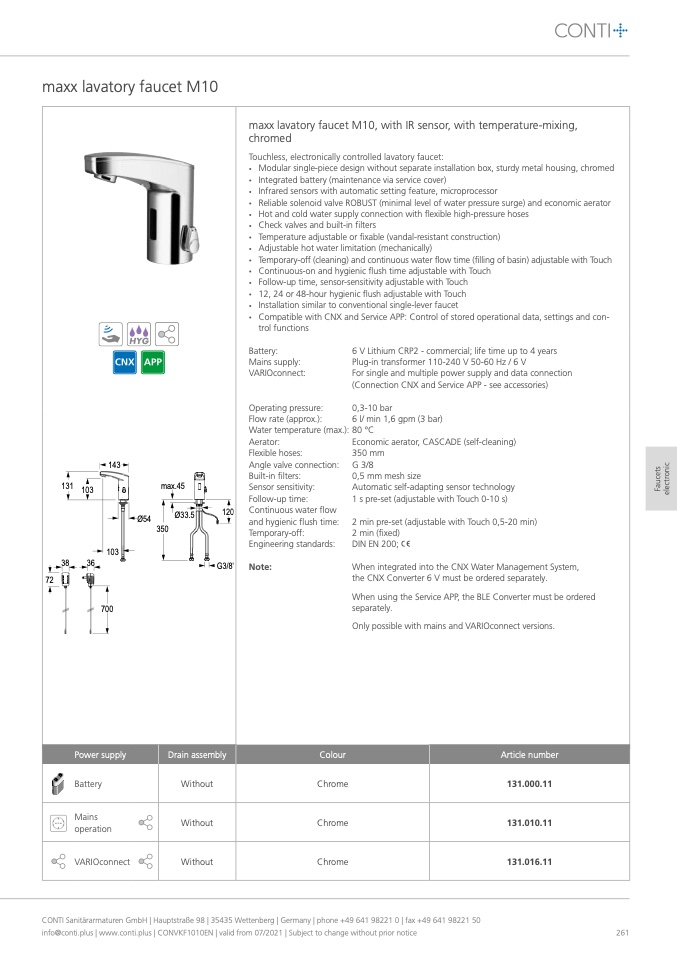

maxx lavatory faucet M10

143

131

103

38

36

72

Ø54

max.45

Ø33.5

350

120

G3/8"

trol functions

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Note:

6 V Lithium CRP2 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6l/min1,6gpm(3bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Only possible with mains and VARIOconnect versions.

Power supply

Drain assembly

Article number

131.000.11

131.010.11

131.016.11

Mains

operation

103

700

Colour

Battery

Without

Chrome

maxx lavatory faucet M10, with IR sensor, with temperature-mixing,

chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

Integrated battery (maintenance via service cover)

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch

•

Continuous-on and hygienic flush time adjustable with Touch

•

Follow-up time, sensor-sensitivity adjustable with Touch

•

12, 24 or 48-hour hygienic flush adjustable with Touch

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: Control of stored operational data, settings and con-

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

Without

Chrome

VARIOconnect

Without

Chrome

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
