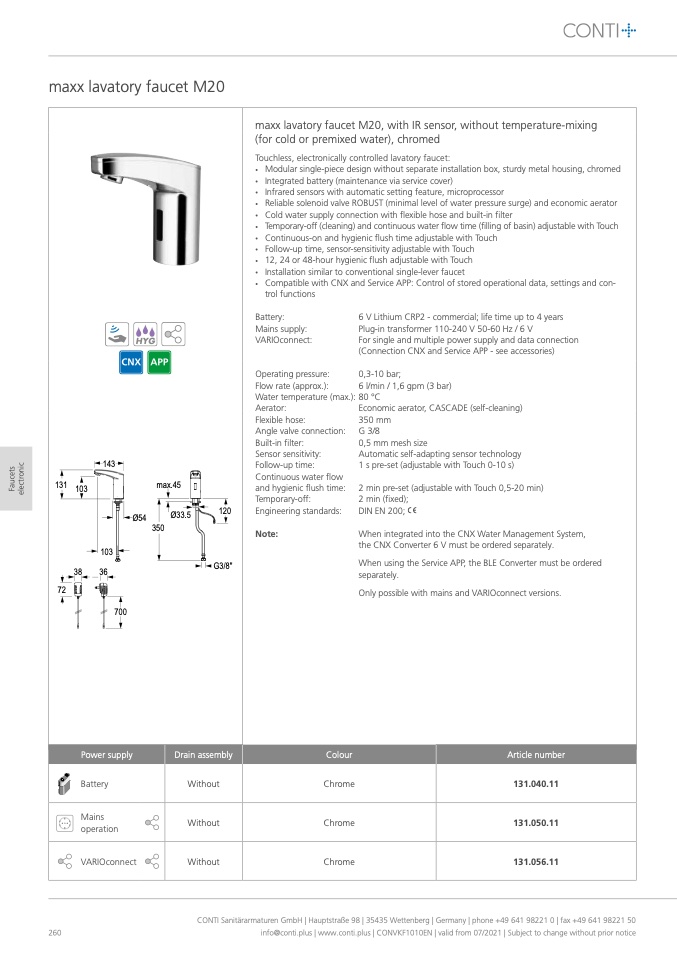

maxx lavatory faucet M20

260

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

143

103

38

36

72

max.45

Ø33.5

350

trol functions

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

6 V Lithium CRP2 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar;

6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed);

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Only possible with mains and VARIOconnect versions.

131

103

Power supply

Battery

Mains

operation

VARIOconnect

Drain assembly

Without

Without

Without

Colour

Chrome

Chrome

Chrome

Article number

131.040.11

131.050.11

131.056.11

Ø54

700

120

G3/8"

Note:

maxx lavatory faucet M20, with IR sensor, without temperature-mixing

(for cold or premixed water), chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

Integrated battery (maintenance via service cover)

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection with flexible hose and built-in filter

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch

•

Continuous-on and hygienic flush time adjustable with Touch

•

Follow-up time, sensor-sensitivity adjustable with Touch

•

12, 24 or 48-hour hygienic flush adjustable with Touch

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: Control of stored operational data, settings and con-
