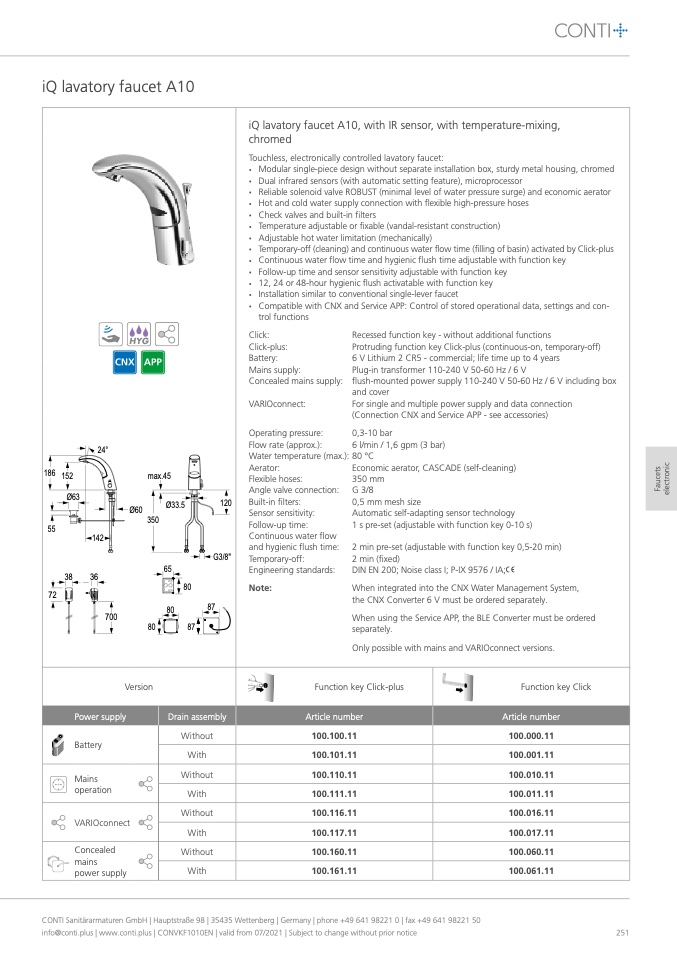

iQ lavatory faucet A10

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

186

152

Ø63

55

72

24°

Ø60

142

max.45

Ø33.5

350

65

80

120

G3/8"

trol functions

Click:

Click-plus:

Battery:

Mains supply:

Concealed mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

Protruding function key Click-plus (continuous-on, temporary-off)

6 V Lithium 2 CR5 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

flush-mounted power supply 110-240 V 50-60 Hz / 6 V including box

and cover

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I; P-IX 9576 / IA;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Only possible with mains and VARIOconnect versions.

38

36

Power supply

Battery

Mains

operation

VARIOconnect

Concealed

mains

power supply

Drain assembly

Without

With

Without

With

Without

With

Without

With

Function key Click-plus

Article number

100.100.11

100.101.11

100.110.11

100.111.11

100.116.11

100.117.11

100.160.11

100.161.11

Function key Click

Article number

100.000.11

100.001.11

100.010.11

100.011.11

100.016.11

100.017.11

100.060.11

100.061.11

700

80

Version

87

80

Note:

87

iQ lavatory faucet A10, with IR sensor, with temperature-mixing,

chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: Control of stored operational data, settings and con-
