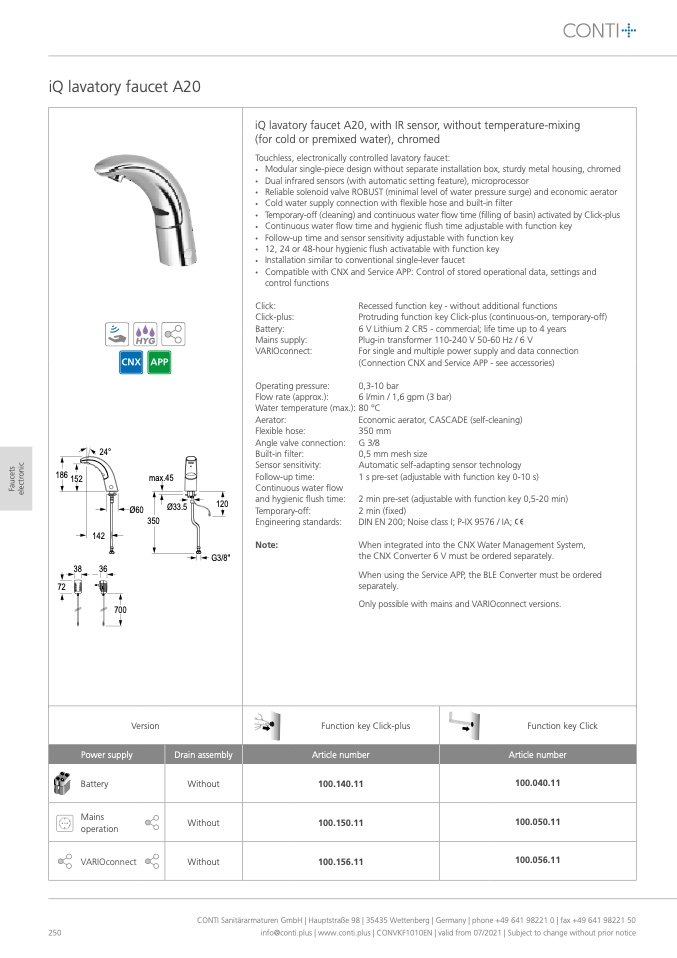

iQ lavatory faucet A20

250

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

24°

142

38

36

72

control functions

Click:

Click-plus:

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

Protruding function key Click-plus (continuous-on, temporary-off)

6 V Lithium 2 CR5 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6 l/min / 1,6 gpm (3 bar)

80 °C

Economic aerator, CASCADE (self-cleaning)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I; P-IX 9576 / IA;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Only possible with mains and VARIOconnect versions.

186

152

max.45

Ø33.5

700

Version

Power supply

Battery

Mains

operation

VARIOconnect

Drain assembly

Without

Without

Without

Function key Click-plus

Article number

100.140.11

100.150.11

100.156.11

Function key Click

Article number

100.040.11

100.050.11

100.056.11

Ø60

350

120

G3/8"

iQ lavatory faucet A20, with IR sensor, without temperature-mixing

(for cold or premixed water), chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy metal housing, chromed

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection with flexible hose and built-in filter

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: Control of stored operational data, settings and

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

Note:
