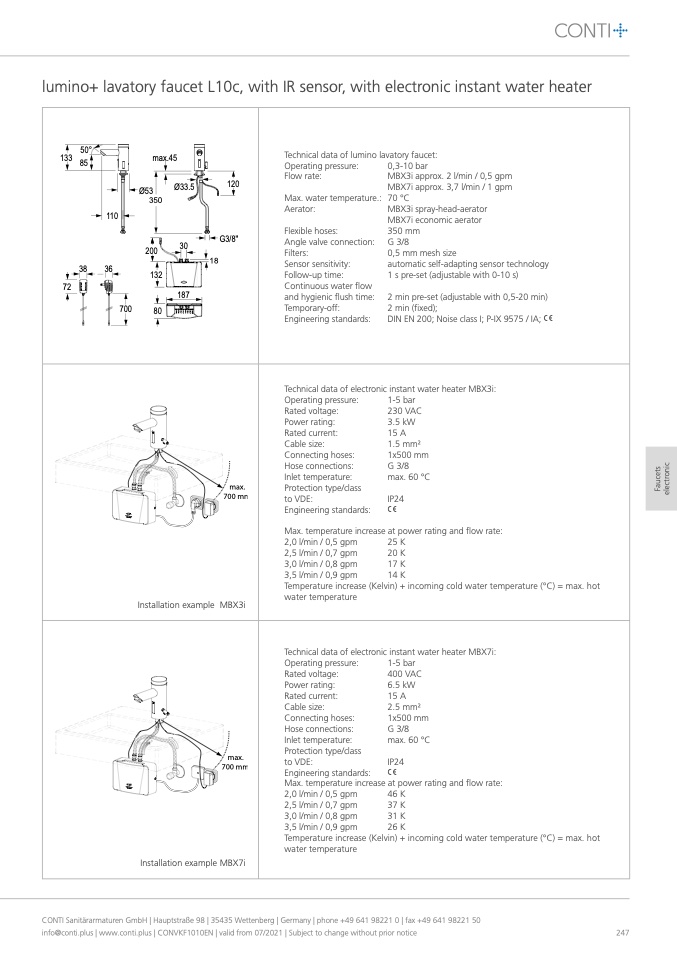

lumino+ lavatory faucet L10c, with IR sensor, with electronic instant water heater
50°
133
85
38
36
700
max.45
Technical data of lumino lavatory faucet:
72
187
80
110
Ø53
350
200
132
Ø33.5
120
Operating pressure:
Flow rate:
Max.watertemperature.:
Aerator:
Flexible hoses:
Angle valve connection:
Filters:
Sensor sensitivity:
Follow-up time:
Continuous water flow
and hygienic flush time:
Temporary-off:
Engineering standards:
0,3-10 bar
MBX3i approx. 2 l/min / 0,5 gpm
MBX7i approx. 3,7 l/min / 1 gpm
70°C
MBX3i spray-head-aerator
MBX7i economic aerator
350 mm
G 3/8
0,5 mm mesh size
automatic self-adapting sensor technology
1 s pre-set (adjustable with 0-10 s)
2 min pre-set (adjustable with 0,5-20 min)
2 min (fixed);
DIN EN 200; Noise class I; P-IX 9575 / IA;
G3/8"
30
18
Technical data of electronic instant water heater MBX3i:
F
a
u
c
e
t
s
e
l
e
c
t
r
o
n
i
c
Installation example MBX3i
max.
700 mm
Installation example MBX7i
Operating pressure:
Rated voltage:
Power rating:
Rated current:
Cable size:
Connecting hoses:
Hose connections:
Inlet temperature:
Protection type/class
to VDE:
1-5 bar
400 VAC
6.5 kW
15A
2.5 mm2
1x500 mm
G 3/8
max. 60 °C
IP24
max.
700 mm
Operating pressure:
Rated voltage:
Power rating:
Rated current:
Cable size:
Connecting hoses:
Hose connections:
Inlet temperature:
Protection type/class
to VDE:
Engineering standards:
Max. temperature increase
2,0 l/min / 0,5 gpm
2,5 l/min / 0,7 gpm
3,0 l/min / 0,8 gpm
1-5 bar
230 VAC
3.5 kW
15A
1.5 mm2
1x500 mm
G 3/8
max. 60 °C
IP24
at power rating and flow rate:
25K
20K
17K
3,5 l/min / 0,9 gpm
Temperature increase (Kelvin) + incoming cold water temperature (°C) = max. hot
water temperature
Technical data of electronic instant water heater MBX7i:
14K
Engineering standards:
Max. temperature increase
2,0 l/min / 0,5 gpm
2,5 l/min / 0,7 gpm
3,0 l/min / 0,8 gpm
3,5 l/min / 0,9 gpm
Temperature increase (Kelvin) + incoming cold water temperature (°C) = max. hot
water temperature
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
247
at power rating and flow rate:
46K
37K
31K
26K
