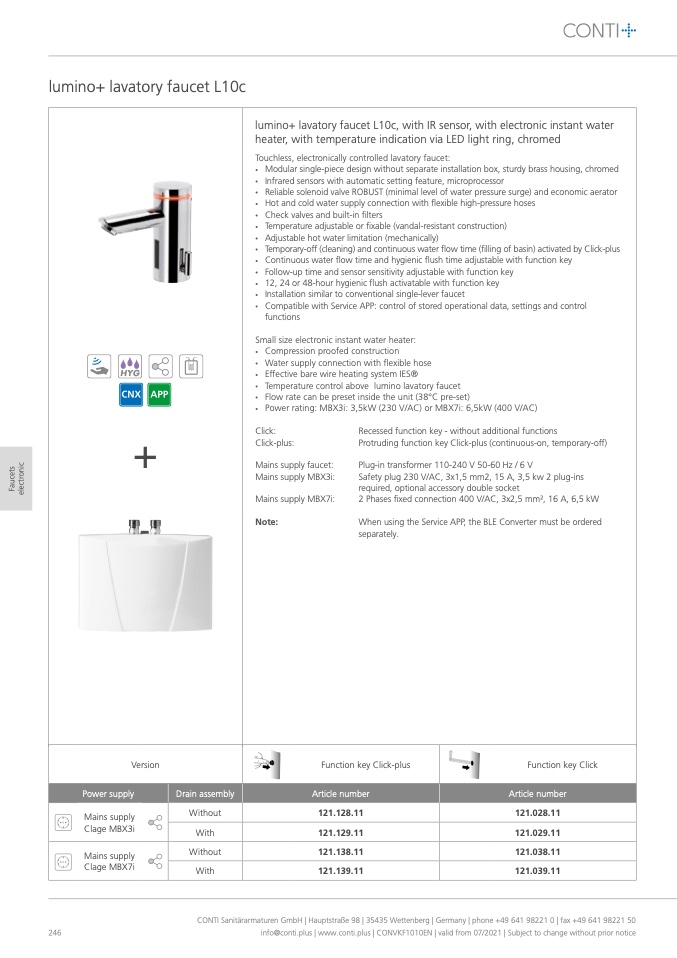

lumino+ lavatory faucet L10c, with IR sensor, with electronic instant water

heater, with temperature indication via LED light ring, chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with Service APP: control of stored operational data, settings and control

functions

Small size electronic instant water heater:

•

Compression proofed construction

•

Water supply connection with flexible hose

•

Effective bare wire heating system IES®

•

Temperature control above lumino lavatory faucet

•

Flow rate can be preset inside the unit (38°C pre-set)

•

Power rating: MBX3i: 3,5kW (230 V/AC) or MBX7i: 6,5kW (400 V/AC)

+

Click:

Click-plus:

Mains supply faucet:

Mains supply MBX3i:

Mains supply MBX7i:

Note:

Recessed function key - without additional functions

Protruding function key Click-plus (continuous-on, temporary-off)

Plug-in transformer 110-240 V 50-60 Hz / 6 V

Safety plug 230 V/AC, 3x1,5 mm2, 15 A, 3,5 kw 2 plug-ins

required, optional accessory double socket

2 Phases fixed connection 400 V/AC, 3x2,5 mm2, 16 A, 6,5 kW

When using the Service APP, the BLE Converter must be ordered

separately.

Version

Function key Click-plus

Function key Click

Power supply

Drain assembly

Article number

121.128.11

Article number

Without

121.028.11

Mains supply

Clage MBX3i

With

121.129.11

121.029.11

Without

121.138.11

121.038.11

Mains supply

Clage MBX7i

With

121.139.11

121.039.11

lumino+ lavatory faucet L10c
