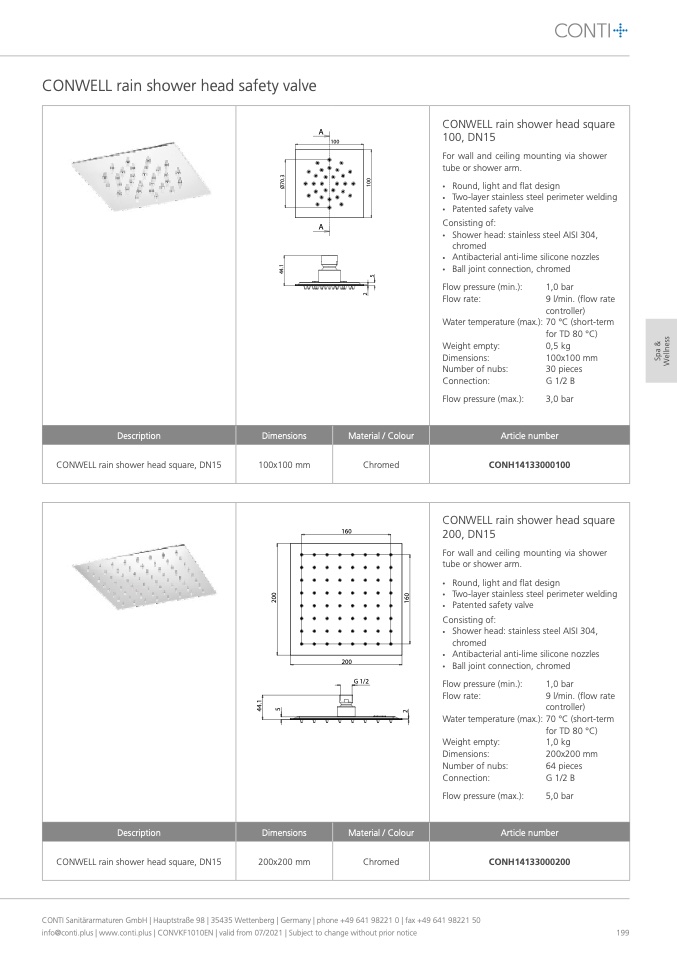

CONWELL rain shower head safety valve

Description

CONWELL rain shower head square, DN15

Dimensions

100x100 mm

Material / Colour

Chromed

Article number

CONH14133000100

CONWELL rain shower head square

200, DN15

For wall and ceiling mounting via shower

tube or shower arm.

•

Round, light and flat design

•

Two-layer stainless steel perimeter welding

•

Patented safety valve

Description

CONWELL rain shower head square, DN15

Dimensions

200x200 mm

Material / Colour

Chromed

Article number

CONH14133000200

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

199

A

100

A

CONWELL rain shower head square

100, DN15

For wall and ceiling mounting via shower

tube or shower arm.

•

Round, light and flat design

•

Two-layer stainless steel perimeter welding

•

Patented safety valve

Consisting of:

•

Shower head: stainless steel AISI 304,

chromed

•

Antibacterial anti-lime silicone nozzles

•

Ball joint connection, chromed

160

200

G 1/2

Consisting of:

•

Shower head: stainless steel AISI 304,

chromed

•

Antibacterial anti-lime silicone nozzles

•

Ball joint connection, chromed

Flow pressure (min.):

Flow rate:

Water temperature (max.):

Weight empty:

Dimensions:

Number of nubs:

Connection:

Flow pressure (max.):

1,0 bar

9 l/min. (flow rate

controller)

70 °C (short-term

for TD 80 °C)

0,5 kg

100x100 mm

30 pieces

G 1/2 B

3,0 bar

Flow pressure (min.):

Flow rate:

Water temperature (max.):

Weight empty:

Dimensions:

Number of nubs:

Connection:

Flow pressure (max.):

1,0 bar

9 l/min. (flow rate

controller)

70 °C (short-term

for TD 80 °C)

1,0 kg

200x200 mm

64 pieces

G 1/2 B

5,0 bar
