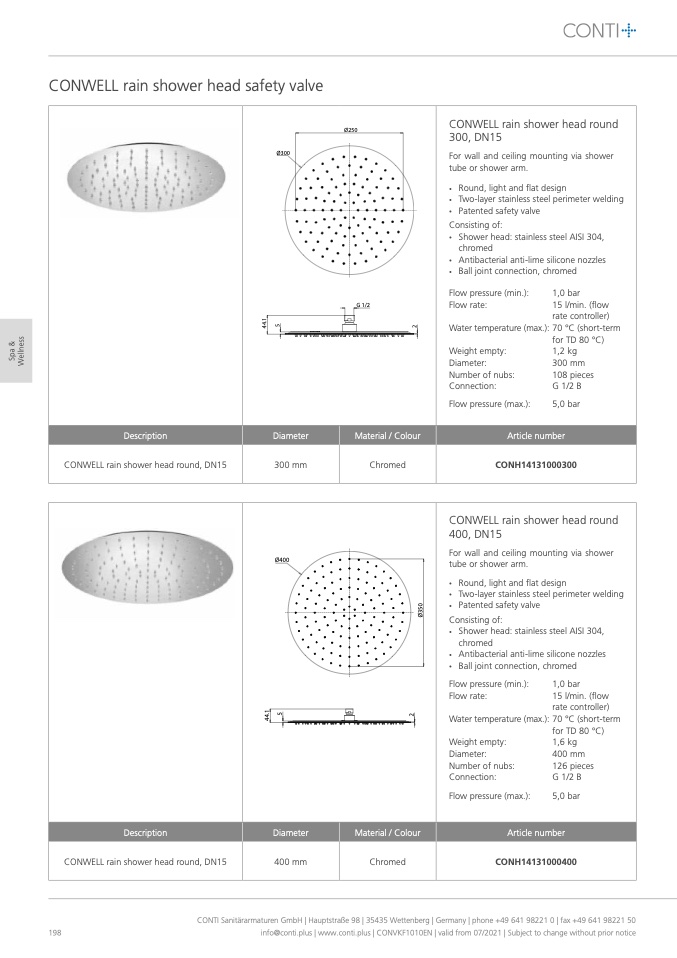

CONWELL rain shower head safety valve

198

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Description

CONWELL rain shower head round, DN15

Diameter

300 mm

Ø400

Article number

CONH14131000300

CONWELL rain shower head round

400, DN15

For wall and ceiling mounting via shower

tube or shower arm.

•

Round, light and flat design

•

Two-layer stainless steel perimeter welding

•

Patented safety valve

Consisting of:

•

Shower head: stainless steel AISI 304,

chromed

•

Antibacterial anti-lime silicone nozzles

•

Ball joint connection, chromed

Description

CONWELL rain shower head round, DN15

Diameter

400 mm

Material / Colour

Chromed

Article number

CONH14131000400

Ø300

Ø250

CONWELL rain shower head round

300, DN15

For wall and ceiling mounting via shower

tube or shower arm.

•

Round, light and flat design

•

Two-layer stainless steel perimeter welding

•

Patented safety valve

Consisting of:

•

Shower head: stainless steel AISI 304,

chromed

•

Antibacterial anti-lime silicone nozzles

•

Ball joint connection, chromed

G 1/2

Material / Colour

Chromed

Flow pressure (min.):

Flow rate:

Water temperature (max.):

Weight empty:

Diameter:

Number of nubs:

Connection:

Flow pressure (max.):

1,0 bar

15 l/min. (flow

rate controller)

70 °C (short-term

for TD 80 °C)

1,2 kg

300 mm

108 pieces

G 1/2 B

5,0 bar

Flow pressure (min.):

Flow rate:

Water temperature (max.):

Weight empty:

Diameter:

Number of nubs:

Connection:

Flow pressure (max.):

1,0 bar

15 l/min. (flow

rate controller)

70 °C (short-term

for TD 80 °C)

1,6 kg

400 mm

126 pieces

G 1/2 B

5,0 bar
