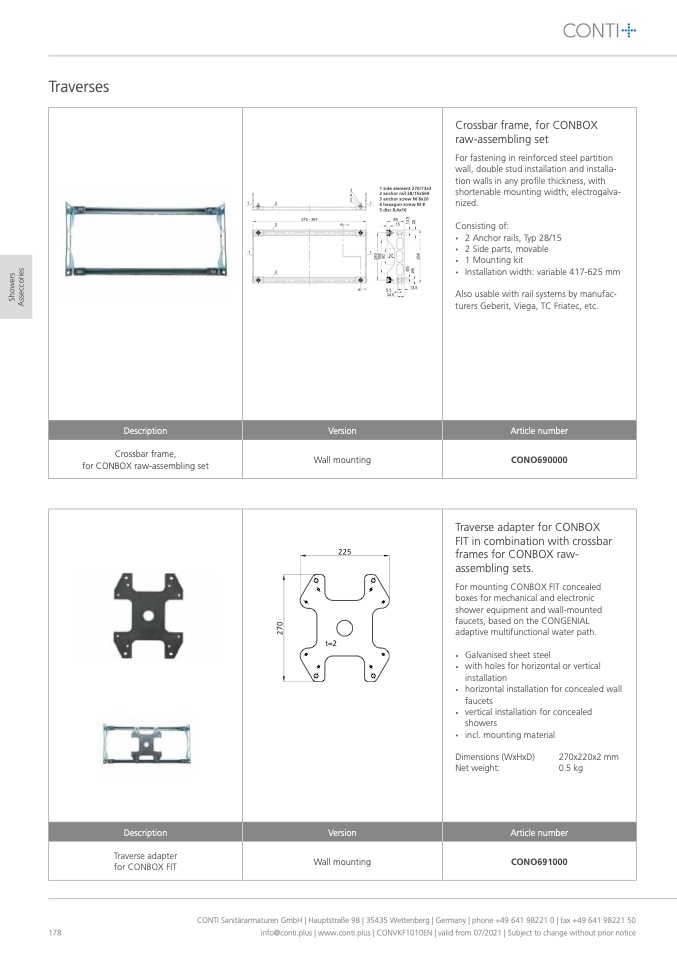

Traverses

178

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Description

Crossbar frame,

for CONBOX raw-assembling set

Version

Wall mounting

Description

Traverse adapter

for CONBOX FIT

Version

Wall mounting

225

t=2

1 side element 270/73x3

2 anchor rail 28/15x569

3 anchor screw M 8x20

4 hexagon screw M 8

5 disc 8,4x16

Crossbar frame, for CONBOX

raw-assembling set

For fastening in reinforced steel partition

wall, double stud installation and installa-

tion walls in any profile thickness, with

shortenable mounting width, electrogalva-

nized.

Consisting of:

•

2 Anchor rails, Typ 28/15

•

2 Side parts, movable

•

1 Mounting kit

•

Installation width: variable 417-625 mm

Also usable with rail systems by manufac-

turers Geberit, Viega, TC Friatec, etc.

Article number

CONO690000

Traverse adapter for CONBOX

FIT in combination with crossbar

frames for CONBOX raw-

assembling sets.

For mounting CONBOX FIT concealed

boxes for mechanical and electronic

shower equipment and wall-mounted

faucets, based on the CONGENIAL

adaptive multifunctional water path.

•

Galvanised sheet steel

•

with holes for horizontal or vertical

installation

•

horizontal installation for concealed wall

faucets

•

vertical installation for concealed

showers

•

incl. mounting material

Dimensions (WxHxD)

270x220x2 mm

2

7

0

S

h

o

w

e

r

s

A

s

s

e

c

c

o

r

i

e

s

Net weight:

0.5 kg

Article number

CONO691000
