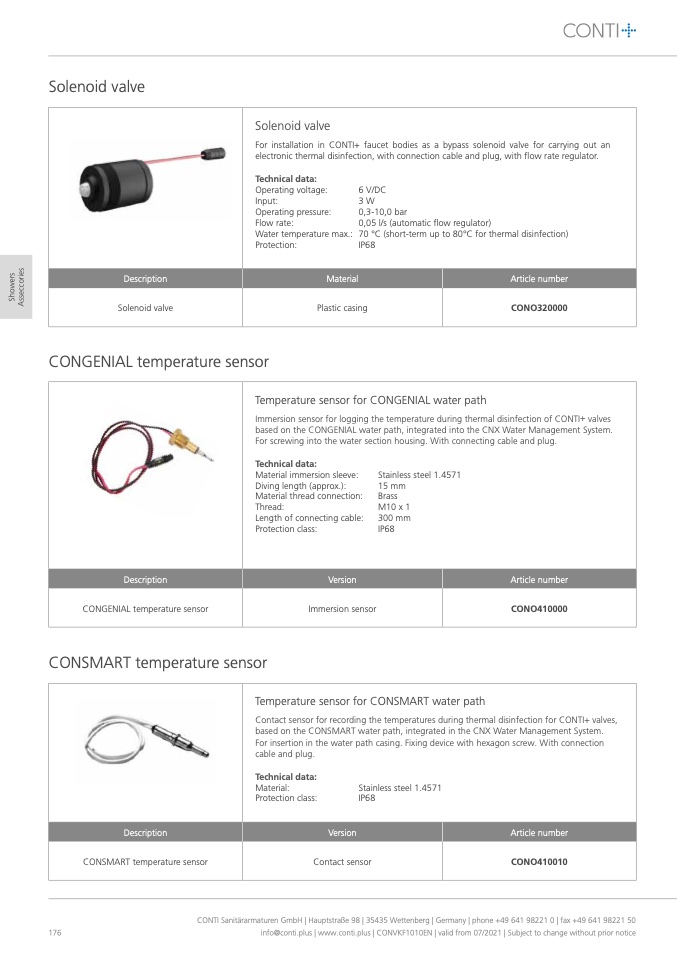

Solenoid valve

For installation in CONTI+ faucet bodies as a bypass solenoid valve for carrying out an

electronic thermal disinfection, with connection cable and plug, with flow rate regulator.

Technical data:

Operating voltage:

Input:

Operating pressure:

Flow rate:

Water temperature max.:

Protection:

6 V/DC

3 W

0,3-10,0 bar

0,05 l/s (automatic flow regulator)

70 °C (short-term up to 80°C for thermal disinfection)

IP68

Description

Material

Article number

Solenoid valve

Plastic casing

CONO320000

Temperature sensor for CONGENIAL water path

Immersion sensor for logging the temperature during thermal disinfection of CONTI+ valves

based on the CONGENIAL water path, integrated into the CNX Water Management System.

For screwing into the water section housing. With connecting cable and plug.

Technical data:

Material immersion sleeve:

Diving length (approx.):

Material thread connection:

Thread:

Length of connecting cable:

Protection class:

Stainless steel 1.4571

15 mm

Brass

M10 x 1

300 mm

IP68

Description

Version

Article number

CONGENIAL temperature sensor

Immersion sensor

CONO410000

Temperature sensor for CONSMART water path

Contact sensor for recording the temperatures during thermal disinfection for CONTI+ valves,

based on the CONSMART water path, integrated in the CNX Water Management System.

For insertion in the water path casing. Fixing device with hexagon screw. With connection

cable and plug.

Technical data:

Material:

Stainless steel 1.4571

Protection class:

IP68

Description

Version

Article number

CONSMART temperature sensor

Contact sensor

CONO410010

Solenoid valve

CONGENIAL temperature sensor

CONSMART temperature sensor
