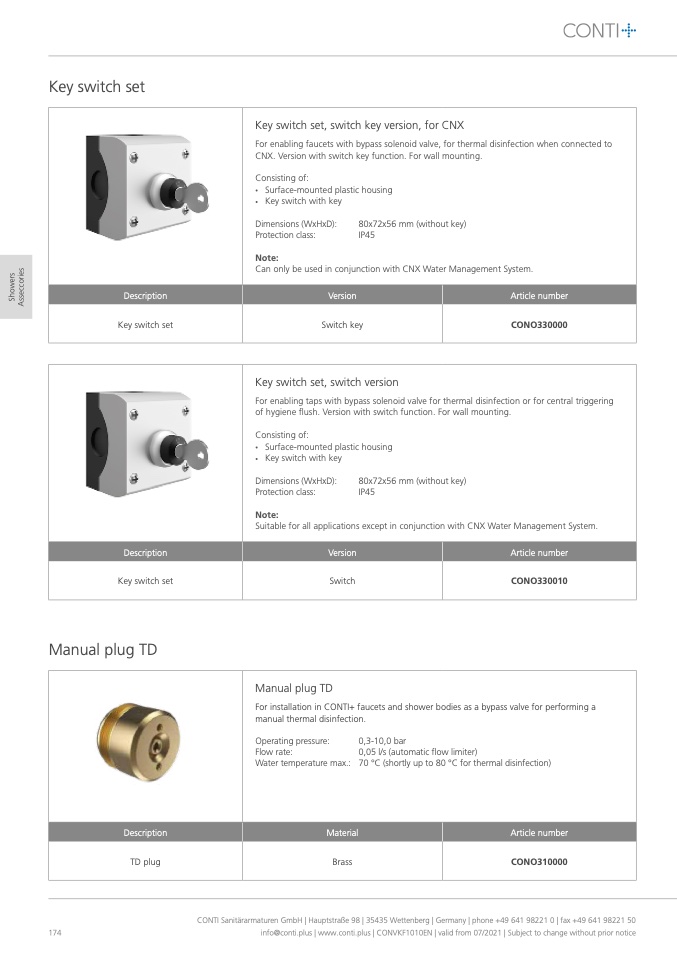

Key switch set, switch key version, for CNX

For enabling faucets with bypass solenoid valve, for thermal disinfection when connected to

CNX. Version with switch key function. For wall mounting.

Consisting of:

•

Surface-mounted plastic housing

•

Key switch with key

Dimensions (WxHxD):

80x72x56 mm (without key)

Protection class:

IP45

Note:

Can only be used in conjunction with CNX Water Management System.

Description

Version

Article number

Key switch set

Switch key

CONO330000

Key switch set, switch version

For enabling taps with bypass solenoid valve for thermal disinfection or for central triggering

of hygiene flush. Version with switch function. For wall mounting.

Consisting of:

•

Surface-mounted plastic housing

•

Key switch with key

Dimensions (WxHxD):

80x72x56 mm (without key)

Protection class:

IP45

Note:

Suitable for all applications except in conjunction with CNX Water Management System.

Description

Version

Article number

Key switch set

Switch

CONO330010

Manual plug TD

For installation in CONTI+ faucets and shower bodies as a bypass valve for performing a

manual thermal disinfection.

Operating pressure:

Flow rate:

Water temperature max.:

0,3-10,0 bar

0,05 l/s (automatic flow limiter)

70 °C (shortly up to 80 °C for thermal disinfection)

Description

Material

Article number

TD plug

Brass

CONO310000

Key switch set

Manual plug TD

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

174

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
