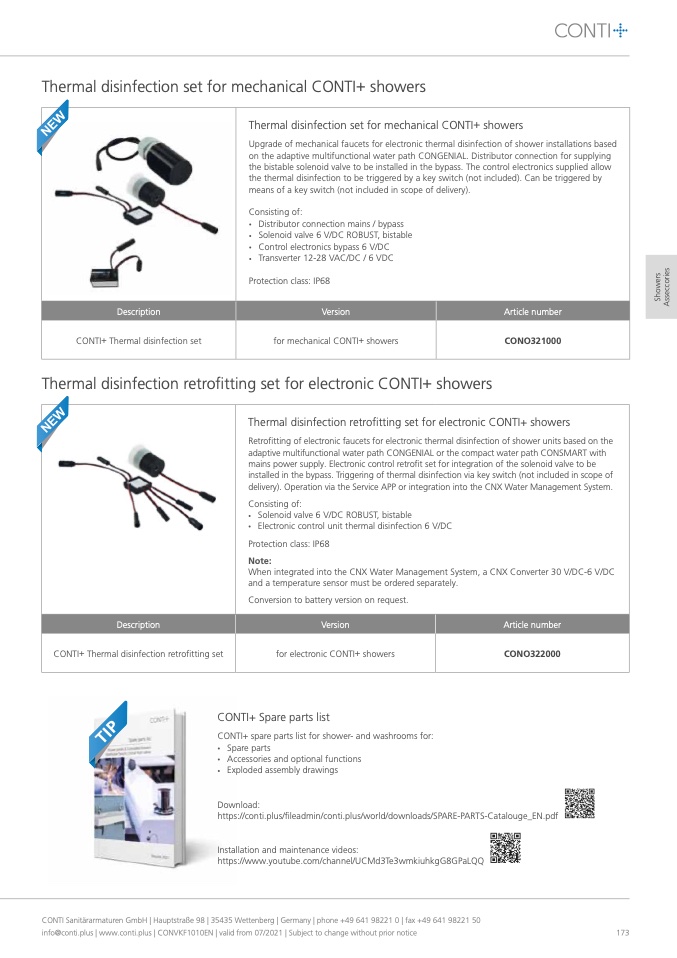

Thermal disinfection set for mechanical CONTI+ showers

Thermal disinfection set for mechanical CONTI+ showers

Upgrade of mechanical faucets for electronic thermal disinfection of shower installations based

on the adaptive multifunctional water path CONGENIAL. Distributor connection for supplying

the bistable solenoid valve to be installed in the bypass. The control electronics supplied allow

the thermal disinfection to be triggered by a key switch (not included). Can be triggered by

means of a key switch (not included in scope of delivery).

S

h

o

w

e

r

s

A

s

s

e

c

c

o

r

i

e

s

Description

CONTI+ Thermal disinfection set

Consisting of:

•

Distributor connection mains / bypass

•

Solenoid valve 6 V/DC ROBUST, bistable

•

Control electronics bypass 6 V/DC

•

Transverter 12-28 VAC/DC / 6 VDC

Protection class: IP68

Version

for mechanical CONTI+ showers

Article number

CONO321000

Thermal disinfection retrofitting set for electronic CONTI+ showers

Thermal disinfection retrofitting set for electronic CONTI+ showers

Retrofitting of electronic faucets for electronic thermal disinfection of shower units based on the

adaptive multifunctional water path CONGENIAL or the compact water path CONSMART with

mains power supply. Electronic control retrofit set for integration of the solenoid valve to be

installed in the bypass. Triggering of thermal disinfection via key switch (not included in scope of

delivery). Operation via the Service APP or integration into the CNX Water Management System.

Consisting of:

•

Solenoid valve 6 V/DC ROBUST, bistable

•

Electronic control unit thermal disinfection 6 V/DC

Protection class: IP68

Note:

When integrated into the CNX Water Management System, a CNX Converter 30 V/DC-6 V/DC

and a temperature sensor must be ordered separately.

Description

CONTI+ Thermal disinfection retrofitting set

Conversion to battery version on request.

Version

for electronic CONTI+ showers

Article number

CONO322000

CONTI+ Spare parts list

CONTI+ spare parts list for shower- and washrooms for:

•

Spare parts

•

Accessories and optional functions

•

Exploded assembly drawings

TIP

Download:

https://conti.plus/fileadmin/conti.plus/world/downloads/SPARE-PARTS-Catalouge_EN.pdf

Installation and maintenance videos:

https://www.youtube.com/channel/UCMd3Te3wmkiuhkgG8GPaLQQ
