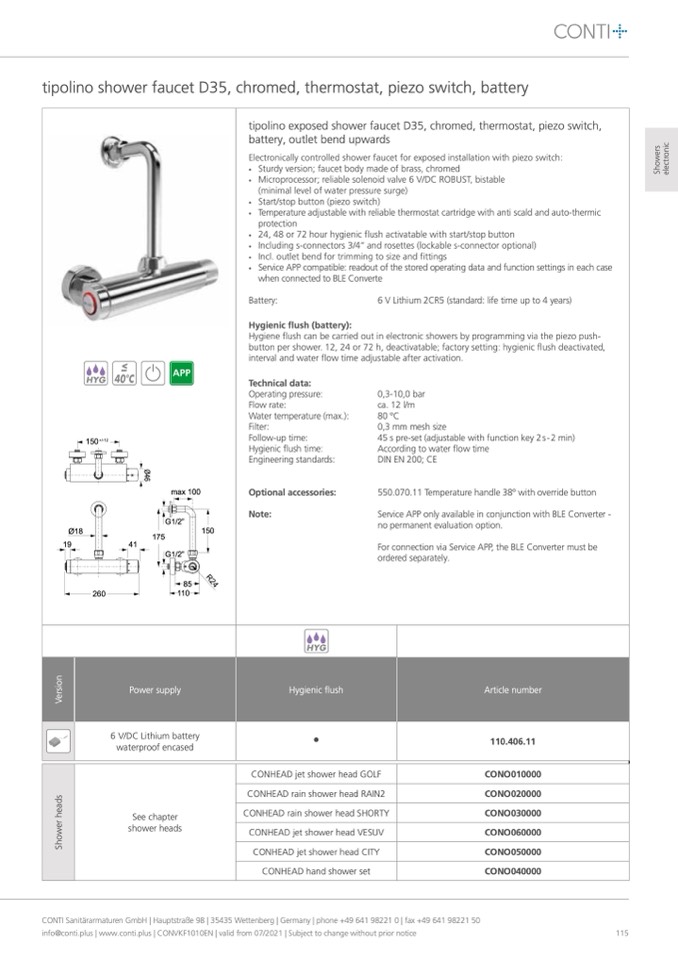

tipolino shower faucet D35, chromed, thermostat, piezo switch, battery

Ø

4

6

Ø18

19

41

max 100

G1/2”

150

175

G1/2”

85

110

150

+/-12

Technical data:

Operating pressure:

Flow rate:

Water temperature (max.):

Filter:

Follow-up time:

Hygienic flush time:

Engineering standards:

Optional accessories:

Note:

0,3-10,0 bar

ca. 12 l/m

80 °C

0,3 mm mesh size

45 s pre-set (adjustable with function key 2s-2 min)

According to water flow time

DIN EN 200; CE

550.070.11 Temperature handle 38o with override button

Service APP only available in conjunction with BLE Converter -

no permanent evaluation option.

For connection via Service APP, the BLE Converter must be

ordered separately.

Article number

110.406.11

CONO010000

CONO020000

CONO030000

CONO060000

CONO050000

CONO040000

R

2

4

260

Power supply

Hygienic flush

•

CONHEAD jet shower head GOLF

CONHEAD rain shower head RAIN2

CONHEAD rain shower head SHORTY

CONHEAD jet shower head VESUV

CONHEAD jet shower head CITY

CONHEAD hand shower set

6 V/DC Lithium battery

waterproof encased

See chapter

shower heads

tipolino exposed shower faucet D35, chromed, thermostat, piezo switch,

battery, outlet bend upwards

Electronically controlled shower faucet for exposed installation with piezo switch:

•

Sturdy version; faucet body made of brass, chromed

•

Microprocessor; reliable solenoid valve 6 V/DC ROBUST, bistable

(minimal level of water pressure surge)

•

Start/stop button (piezo switch)

•

Temperature adjustable with reliable thermostat cartridge with anti scald and auto-thermic

protection

•

24, 48 or 72 hour hygienic flush activatable with start/stop button

•

Including s-connectors 3/4‘‘ and rosettes (lockable s-connector optional)

•

Incl. outlet bend for trimming to size and fittings

•

Service APP compatible: readout of the stored operating data and function settings in each case

when connected to BLE Converte

Battery:

6 V Lithium 2CR5 (standard: life time up to 4 years)

Hygienic flush (battery):

Hygiene flush can be carried out in electronic showers by programming via the piezo push-

button per shower. 12, 24 or 72 h, deactivatable; factory setting: hygienic flush deactivated,

interval and water flow time adjustable after activation.

S

h

o

w

e

r

h

e

a

d

s

V

e

r

s

i

o

n

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c
