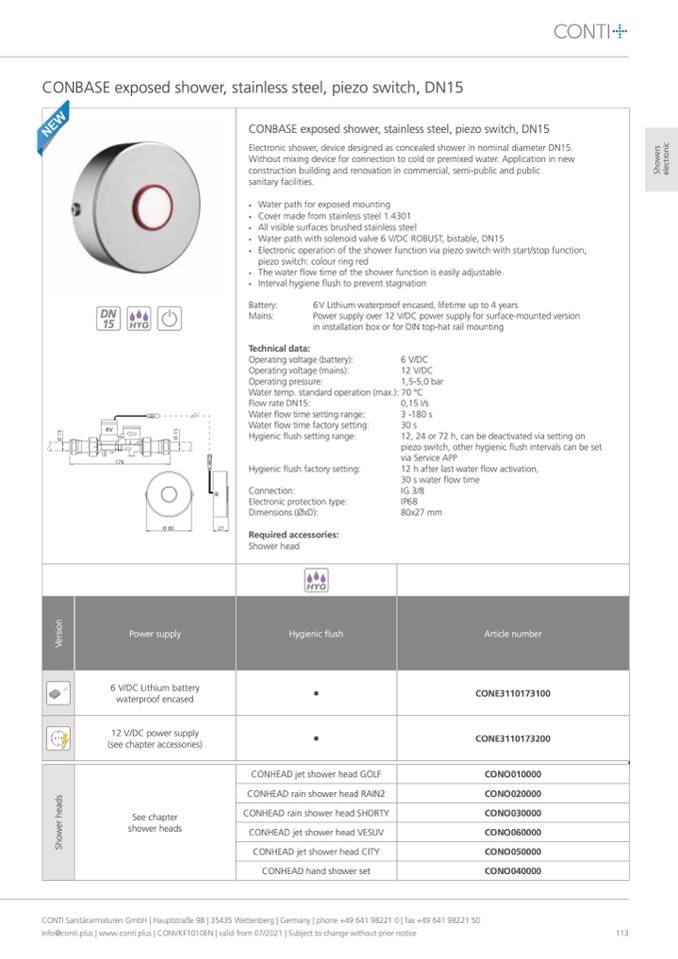

CONBASE exposed shower, stainless steel, piezo switch, DN15

27

176

Ø 80

CONBASE exposed shower, stainless steel, piezo switch, DN15

Electronic shower, device designed as concealed shower in nominal diameter DN15.

Without mixing device for connection to cold or premixed water. Application in new

construction building and renovation in commercial, semi-public and public

sanitary facilities.

•

Water path for exposed mounting

•

Cover made from stainless steel 1.4301

•

All visible surfaces brushed stainless steel

•

Water path with solenoid valve 6 V/DC ROBUST, bistable, DN15

•

Electronic operation of the shower function via piezo switch with start/stop function,

piezo switch: colour ring red

•

The water flow time of the shower function is easily adjustable.

•

Interval hygiene flush to prevent stagnation

Battery:

6 V Lithium waterproof encased, lifetime up to 4 years

Mains:

Power supply over 12 V/DC power supply for surface-mounted version

in installation box or for DIN top-hat rail mounting

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating pressure:

Water temp. standard operation (max.):

Flow rate DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Connection:

Electronic protection type:

Dimensions (ØxD):

Required accessories:

Shower head

6 V/DC

12 V/DC

1,5-5,0 bar

70 °C

0,15 l/s

3 -180 s

30 s

12, 24 or 72 h, can be deactivated via setting on

piezo switch, other hygienic flush intervals can be set

via Service APP

12 h after last water flow activation,

30 s water flow time

IG 3/8

IP68

80x27 mm

Power supply

Hygienic flush

Article number

6 V/DC Lithium battery

waterproof encased

•

CONE3110173100

12 V/DC power supply

(see chapter accessories)

•

CONE3110173200

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010000

CONHEAD rain shower head RAIN2

CONO020000

CONHEAD rain shower head SHORTY

CONO030000

CONHEAD jet shower head VESUV

CONO060000

CONHEAD jet shower head CITY

CONO050000

CONHEAD hand shower set

CONO040000
