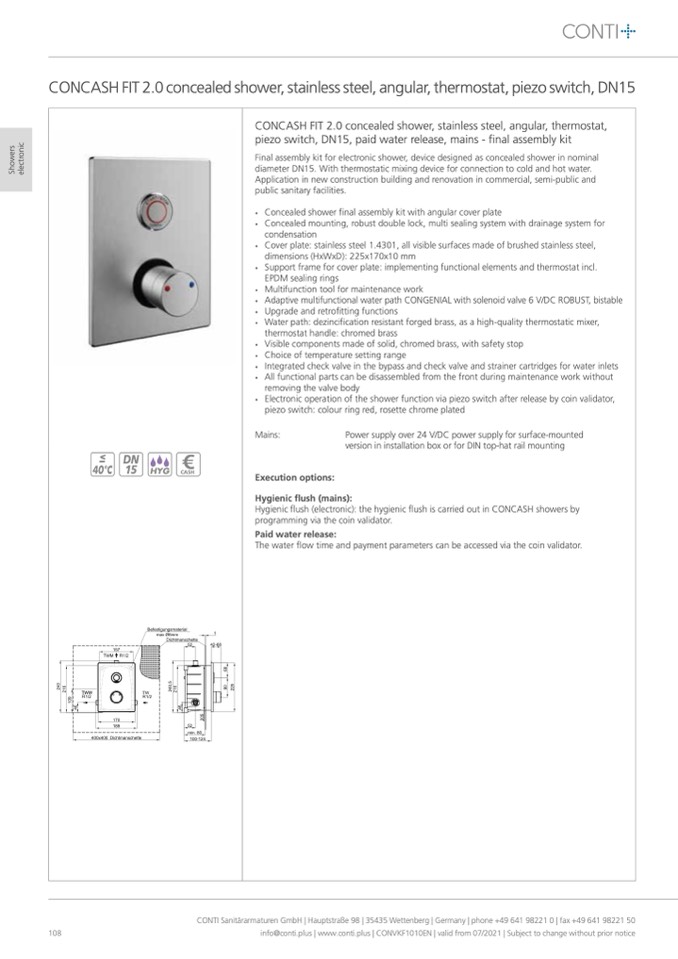

CONCASH FIT 2.0 concealed shower, stainless steel, angular, thermostat, piezo switch, DN15

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

108

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Sealing collar

Mounting material

CASH

CONCASH FIT 2.0 concealed shower, stainless steel, angular, thermostat,

piezo switch, DN15, paid water release, mains - final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal

diameter DN15. With thermostatic mixing device for connection to cold and hot water.

Application in new construction building and renovation in commercial, semi-public and

public sanitary facilities.

•

Concealed shower final assembly kit with angular cover plate

•

Concealed mounting, robust double lock, multi sealing system with drainage system for

condensation

•

Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel,

dimensions (HxWxD): 225x170x10 mm

•

Support frame for cover plate: implementing functional elements and thermostat incl.

EPDM sealing rings

•

Multifunction tool for maintenance work

•

Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable

•

Upgrade and retrofitting functions

•

Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer,

thermostat handle: chromed brass

•

Visible components made of solid, chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

All functional parts can be disassembled from the front during maintenance work without

removing the valve body

•

Electronic operation of the shower function via piezo switch after release by coin validator,

piezo switch: colour ring red, rosette chrome plated

Mains:

Power supply over 24 V/DC power supply for surface-mounted

version in installation box or for DIN top-hat rail mounting

Execution options:

Hygienic flush (mains):

Hygienic flush (electronic): the hygienic flush is carried out in CONCASH showers by

programming via the coin validator.

Paid water release:

The water flow time and payment parameters can be accessed via the coin validator.
