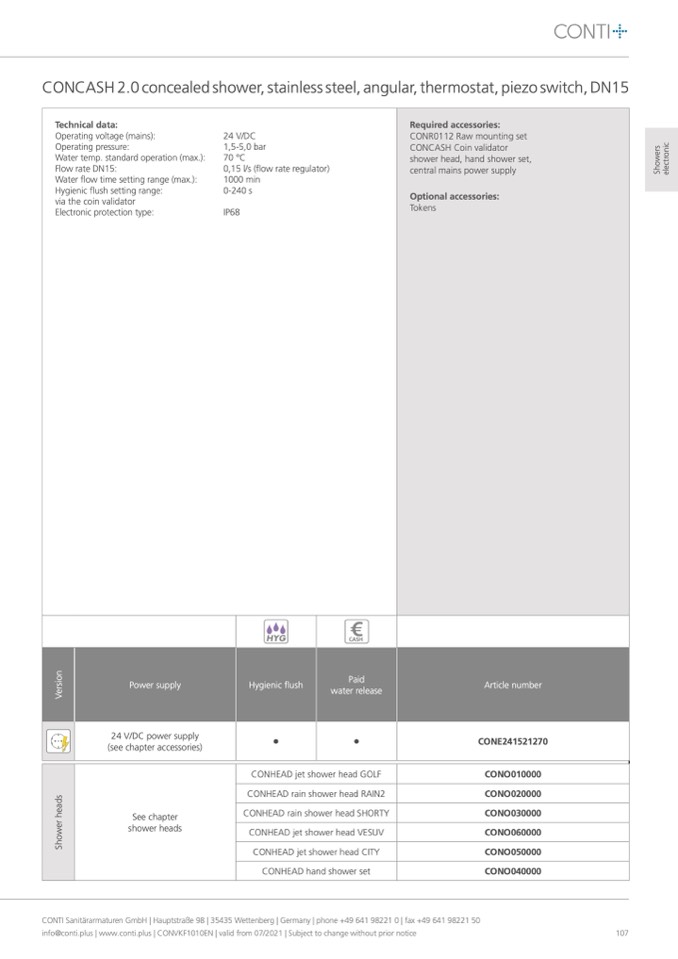

CONCASH 2.0 concealed shower, stainless steel, angular, thermostat, piezo switch, DN15

Technical data:

Operating voltage (mains):

Operating pressure:

Water temp. standard operation (max.):

Flow rate DN15:

Water flow time setting range (max.):

Hygienic flush setting range:

via the coin validator

Electronic protection type:

24 V/DC

1,5-5,0 bar

70 °C

0,15 l/s (flow rate regulator)

1000 min

0-240 s

IP68

Required accessories:

CONR0112 Raw mounting set

CONCASH Coin validator

shower head, hand shower set,

central mains power supply

Optional accessories:

Tokens

CASH

Power supply

Hygienic flush

Paid

water release

Article number

24 V/DC power supply

(see chapter accessories)

•

•

CONE241521270

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010000

CONHEAD rain shower head RAIN2

CONO020000

CONHEAD rain shower head SHORTY

CONO030000

CONHEAD jet shower head VESUV

CONO060000

CONHEAD jet shower head CITY

CONO050000

CONHEAD hand shower set

CONO040000

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
