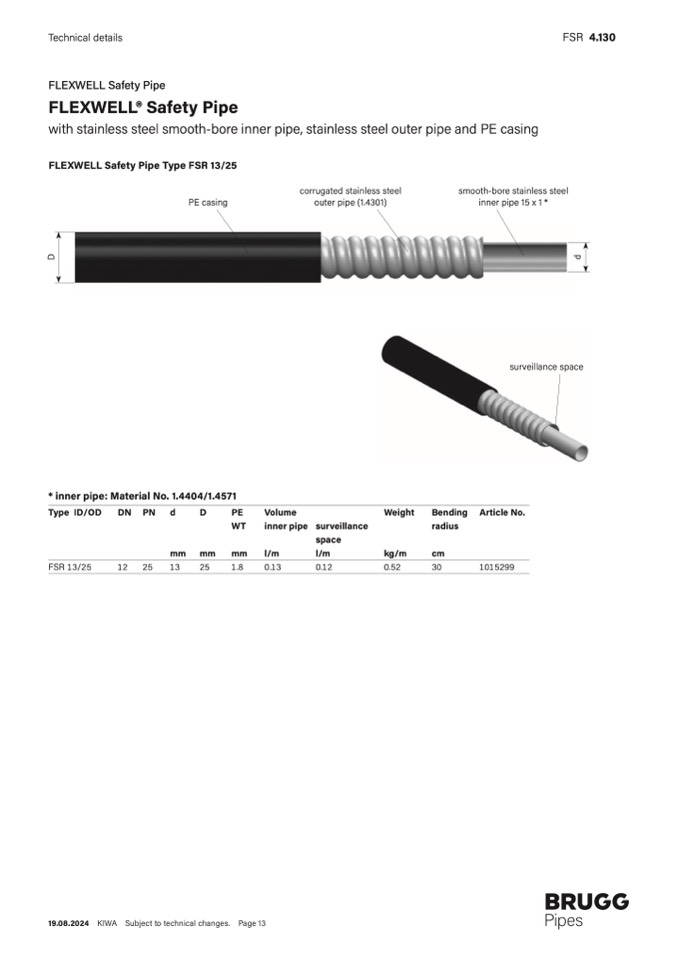

Technical details

FSR 4.130

FLEXWELL Safety Pipe

FLEXWELL® Safety Pipe

with stainless steel smooth-bore inner pipe, stainless steel outer pipe and PE casing

FLEXWELL Safety Pipe Type FSR 13/25

PE casing

corrugated stainless steel

outer pipe (1.4301)

smooth-bore stainless steel

inner pipe 15 x 1 *

* inner pipe: Material No. 1.4404/1.4571

Type ID/OD

DN PN d

D

PE

WT

Volume

inner pipe

Weight

m

m

m

m

m

m

l/

m

l/m

kg/

m

cm

FSR 13/25

12 25

13

25

1.8

0.13

0.12

0.52

30

1015299

19.08.2024 KIWA Subject to technical changes. Page 13

surveillance

space

Bending Article No.

radius

surveillance space

D

d
