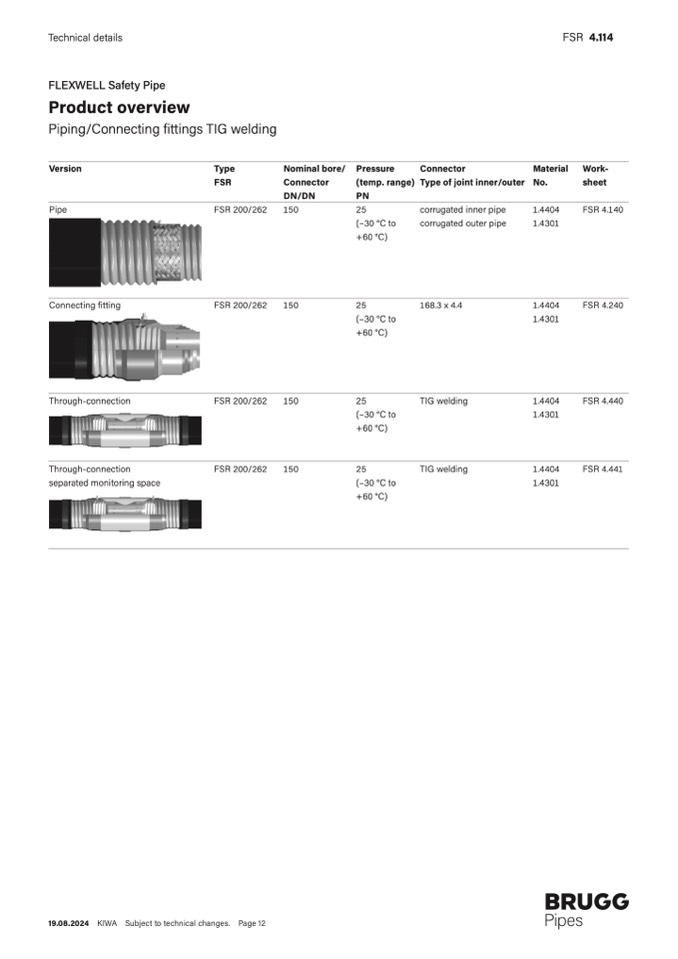

Technical details

FSR 4.114

FLEXWELL Safety Pipe

Product overview

Piping/Connecting fittings TIG welding

Version

Pipe

Connecting fitting

Through-connection

Through-connection

separated monitoring space

Type

Nominal bore/

FSR

Connector

DN/DN

150

150

150

150

Pressure

(temp. range)

PN

25

(–30 °C

+60 °C)

Connector

Type of joint inner/outer

corrugated inner pipe

corrugated outer pipe

168.3 x 4.4

TIG welding

TIG welding

Material Work-

No.

sheet

1.4404

FSR 4.140

1.4301

1.4404

FSR 4.240

1.4301

1.4404

FSR 4.440

1.4301

1.4404

FSR 4.441

1.4301

FSR 200/262

FSR 200/262

FSR 200/262

FSR 200/262

25

(–30 °C

+60 °C)

25

(–30 °C

+60 °C)

25

(–30 °C

+60 °C)

to

to

to

to

19.08.2024 KIWA Subject to technical changes.

Page 12
