General conditions

Appearance

Total hardness

pH

Electrical conductivity

Chlorides

The water must comply with the requirements for the water intended to human consumption

by current legislation Decree 31/2001.

Limpid

System capacity ≤ 100 kW: no limit

System capacity > 100 kW: between 5 and 15 °f

Between 6.5 and 9.5

Plant capacity> 100 kW: <1500 μS / cm at 20 °C

With concentrations higherr than 50 mg / lt and in the presence

of steel equipment molybdenum-free stainless steel, check the suitability

of the systems with manufacturer.

CIRCUIT - Paragraph 7.2.4

Appearance

pH

Conditioners•

Iron (as Fe)

Copper (like Cu)

Aluminum (as Al)

Chlorides

Limpid

In absence of aluminum and its alloys: between 6.5 and 9.5

In the presence of aluminum and its alloys: between 7 and 8.5

must be present in the concentrations prescribed by the supplier in relation

to the performance required in terms of antiscaling, anticorrosive properties,

biocides and antifreeze.

<0.5 mg / lt (higher iron values are due to corrosive phenomena to be eliminated)

<0.1 mg / lt (higher copper values are due to corrosive phenomena to be eliminated)

<0.1 mg / lt (higher aluminum values are due to corrosive phenomena to be eliminated)

With concentrations higher than 50 mg / lt and in the presence of steel equipment

stainless steel free of molybdenum, check with the manufacturer

of the equipment the suitability of the product.

Go to the PRODUCT page of

T.EM.I.T. LINE Treatment and maintenance of Thermal plants

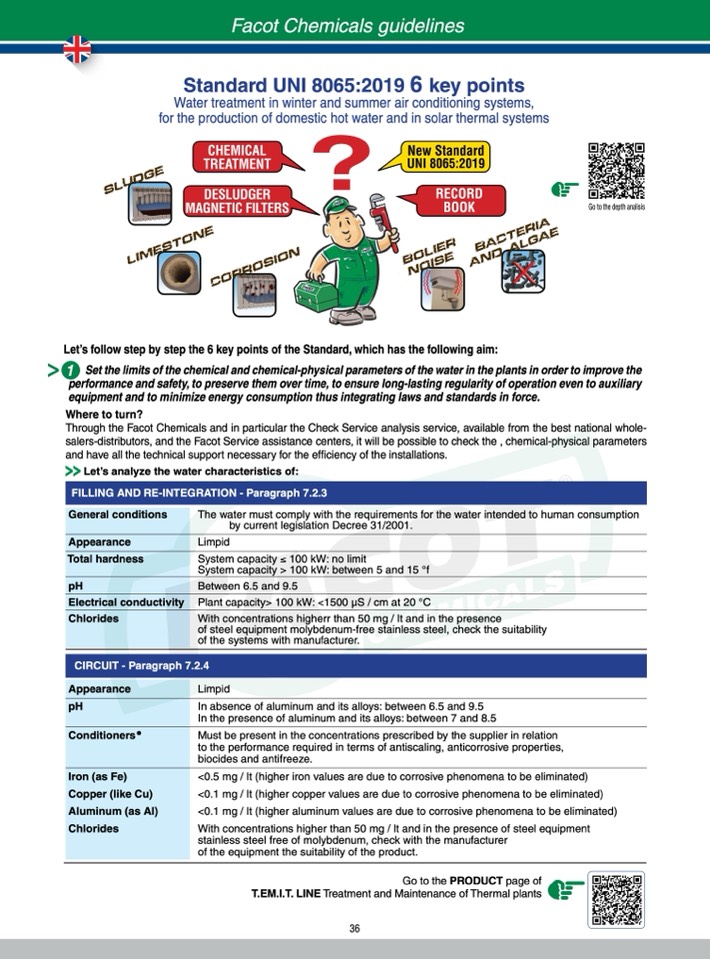

Facot Chemicals guidelines

Standard UNI 8065:2019 6 key points

Water treatment in winter and summer air conditioning systems,

for the production of domestic hot water and in solar thermal systems

Let’s follow step by step the 6 key points of the Standard, which has the following aim:

Go to the depth analisis

1 Set the limits of the chemical and chemical-physical parameters of the water in the plants in order to improve the

performance and safety, to preserve them over time, to ensure long-lasting regularity of operation even to auxiliary

equipment and to minimize energy consumption thus integrating laws and standards in force.

Where to turn?

Through the Facot Chemicals and in particular the Check Service analysis service, available from the best national whole-

salers-distributors, and the Facot Service assistance centers, it will be possible to check the , chemical-physical parameters

and have all the technical support necessary for the efficiency of the installations.

Let’s analyze the water characteristics of:

FILLING AND RE-INTEGRATION - Paragraph 7.2.3
