COD.

MOD.

A

B

C

D

E

F

AH0394301A

35/Y

ø4

AH0394302A

35/Y

ø6

35/Y

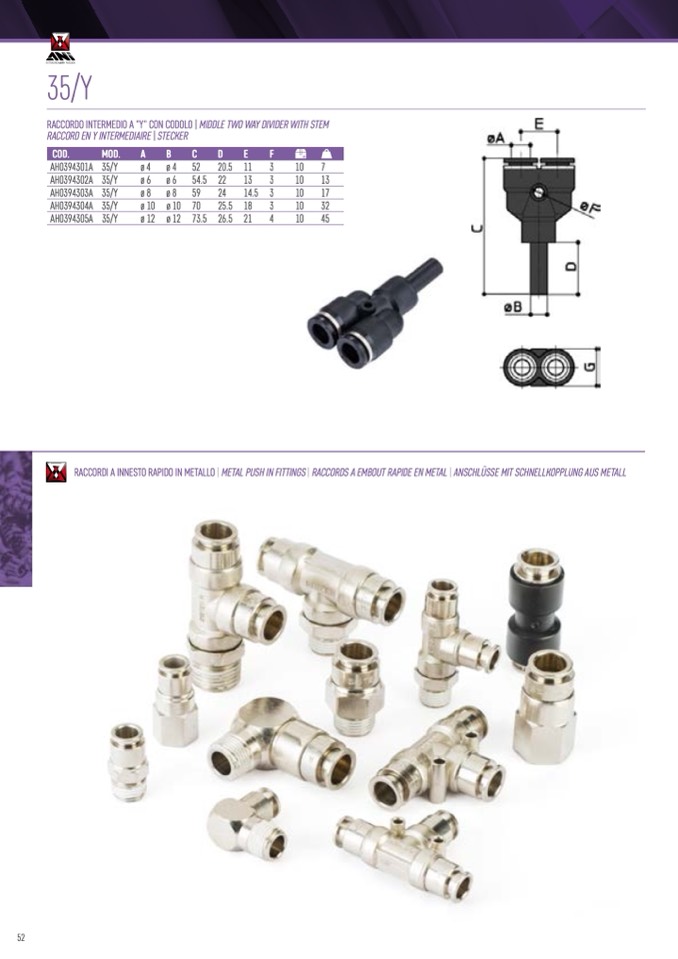

RACCORDO INTERMEDIO A "Y" CON CODOLO | MIDDLE TWO WAY DIVIDER WITH STEM

RACCORD EN Y INTERMEDIAIRE | STECKER

AH0394303A 35/Y

AH0394304A 35/Y

AH0394305A 35/Y

ø 8

ø 10

ø 12

ø 4

ø 6

ø8

ø 10

ø 12

52 20.5 11 3

54.5 22 13 3

59 24 14.5 3

70 25.5 18 3

73.5 26.5 21 4

10 7

10 13

10 17

10 32

10 45

RACCORDI A INNESTO RAPIDO IN METALLO | METAL PUSH IN FITTINGS | RACCORDS A EMBOUT RAPIDE EN METAL | ANSCHLÜSSE MIT SCHNELLKOPPLUNG AUS METALL

52
