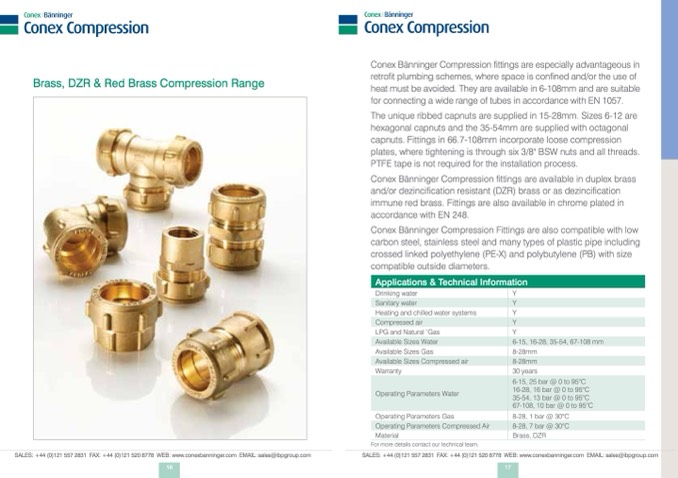

Brass, DZR & Red Brass Compression Range

Conex Bänninger Compression fittings are especially advantageous in

retrofit plumbing schemes, where space is confined and/or the use of

heat must be avoided. They are available in 6-108mm and are suitable

for connecting a wide range of tubes in accordance with EN 1057.

The unique ribbed capnuts are supplied in 15-28mm. Sizes 6-12 are

hexagonal capnuts and the 35-54mm are supplied with octagonal

capnuts. Fittings in 66.7-108mm incorporate loose compression

plates, where tightening is through six 3/8" BSW nuts and all threads.

PTFE tape is not required for the installation process.

Conex Bänninger Compression fittings are available in duplex brass

and/or dezincification resistant (DZR) brass or as dezincification

immune red brass. Fittings are also available in chrome plated in

accordance with EN 248.

Conex Bänninger Compression Fittings are also compatible with low

carbon steel, stainless steel and many types of plastic pipe including

crossed linked polyethylene (PE-X) and polybutylene (PB) with size

compatible outside diameters.

Applications & Technical Information

Drinking water

Heating and chilled water systems

LPG and Natural ‘Gas

Available Sizes Gas

Warranty

Operating Parameters Gas

Material

For more details contact our technical team.

Y

Y

Y

Y

Y

6-15, 16-28, 35-54, 67-108 mm

8-28mm

8-28mm

30 years

8-28, 1 bar @ 30°C

Brass, DZR

Operating Parameters Compressed Air

8-28, 7 bar @ 30°C

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

16

Sanitary water

Compressed air

Available Sizes Water

Available Sizes Compressed air

Operating Parameters Water

17

6-15, 25 bar @ 0 to 95°C

16-28, 16 bar @ 0 to 95°C

35-54, 13 bar @ 0 to 95°C

67-108, 10 bar @ 0 to 95°C
