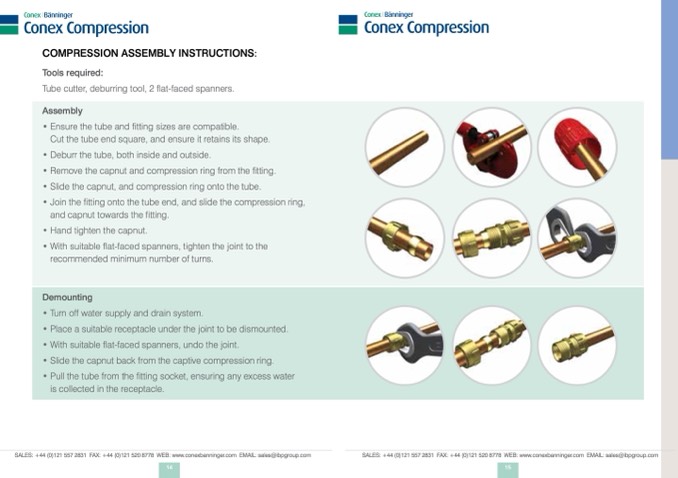

COMPRESSION ASSEMBLY INSTRUCTIONS:

Tools required:

Tube cutter, deburring tool, 2 flat-faced spanners.

Assembly

• Ensure the tube and fitting sizes are compatible.

Cut the tube end square, and ensure it retains its shape.

• Deburr the tube, both inside and outside.

• Remove the capnut and compression ring from the fitting.

• Slide the capnut, and compression ring onto the tube.

• Join the fitting onto the tube end, and slide the compression ring,

and capnut towards the fitting.

• Hand tighten the capnut.

• With suitable flat-faced spanners, tighten the joint to the

recommended minimum number of turns.

Demounting

• Turn off water supply and drain system.

• Place a suitable receptacle under the joint to be dismounted.

• With suitable flat-faced spanners, undo the joint.

• Slide the capnut back from the captive compression ring.

• Pull the tube from the fitting socket, ensuring any excess water

is collected in the receptacle.
