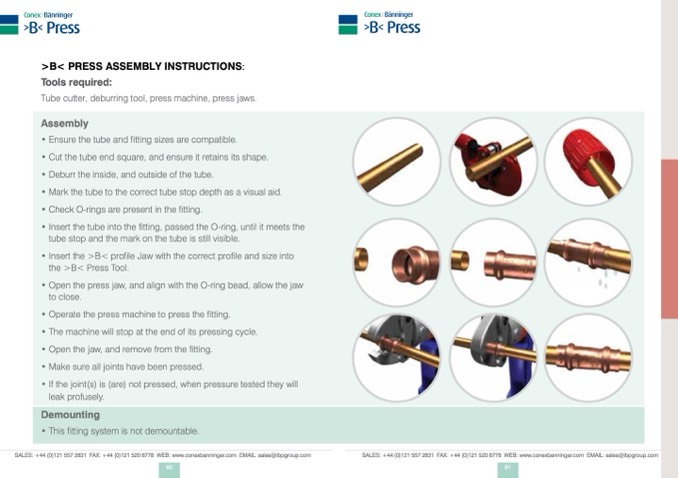

>B< PRESS ASSEMBLY INSTRUCTIONS:

Tools required:

Tube cutter, deburring tool, press machine, press jaws.

Assembly

• Ensure the tube and fitting sizes are compatible.

• Cut the tube end square, and ensure it retains its shape.

• Deburr the inside, and outside of the tube.

• Mark the tube to the correct tube stop depth as a visual aid.

• Check O-rings are present in the fitting.

• Insert the tube into the fitting, passed the O-ring, until it meets the

tube stop and the mark on the tube is still visible.

• Insert the >B< profile Jaw with the correct profile and size into

the >B< Press Tool.

• Open the press jaw, and align with the O-ring bead, allow the jaw

to close.

• Operate the press machine to press the fitting.

• The machine will stop at the end of its pressing cycle.

• Open the jaw, and remove from the fitting.

• Make sure all joints have been pressed.

• If the joint(s) is (are) not pressed, when pressure tested they will

leak profusely.

Demounting

• This fitting system is not demountable.
