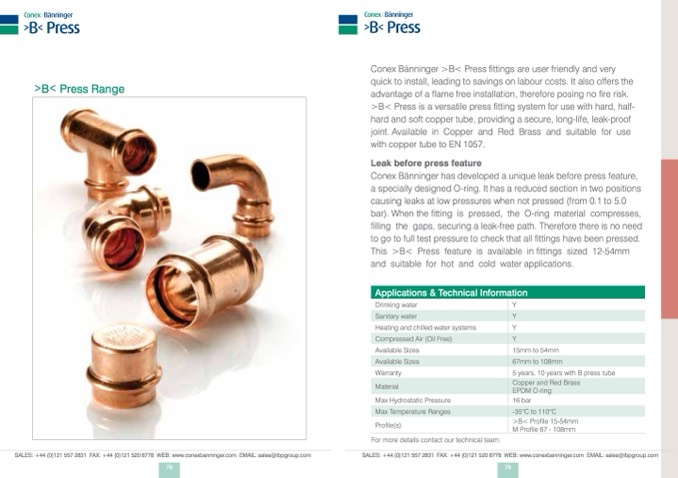

>B< Press Range

Conex Bänninger >B< Press fittings are user friendly and very

quick to install, leading to savings on labour costs. It also offers the

advantage of a flame free installation, therefore posing no fire risk.

>B< Press is a versatile press fitting system for use with hard, half-

hard and soft copper tube, providing a secure, long-life, leak-proof

joint. Available in Copper and Red Brass and suitable for use

with copper tube to EN 1057.

Leak before press feature

Conex Bänninger has developed a unique leak before press feature,

a specially designed O-ring. It has a reduced section in two positions

causing leaks at low pressures when not pressed (from 0.1 to 5.0

bar). When the fitting is pressed, the O-ring material compresses,

filling the gaps, securing a leak-free path. Therefore there is no need

to go to full test pressure to check that all fittings have been pressed.

This >B< Press feature is available in fittings sized 12-54mm

and suitable for hot and cold water applications.

Applications & Technical Information

Drinking water

Heating and chilled water systems

Available Sizes

Warranty

Max Hydrostatic Pressure

Y

Y

Y

Y

15mm to 54mm

67mm to 108mm

5 years, 10 years with B press tube

16 bar

>B< Profile 15-54mm

M Profile 67 - 108mm

Max Temperature Ranges

-35°C to 110°C

Profile(s)

For more details contact our technical team.

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

78

Sanitary water

Compressed Air (Oil Free)

Available Sizes

Material

79

Copper and Red Brass

EPDM O-ring
