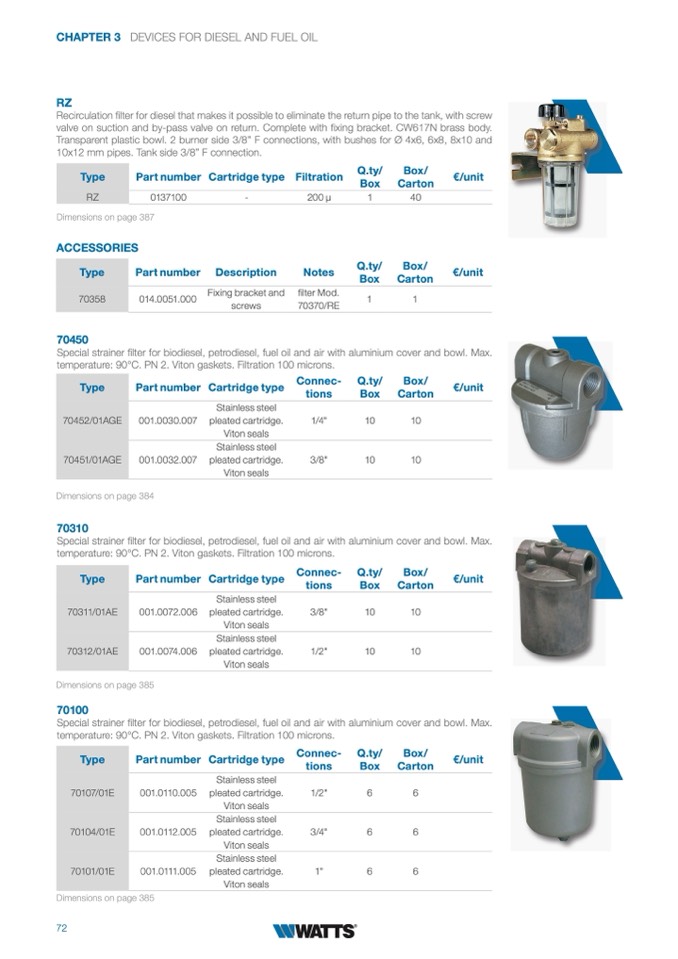

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL
RZ
Recirculation filter for diesel that makes it possible to eliminate the return pipe to the tank, with screw
valve on suction and by-pass valve on return. Complete with fixing bracket. CW617N brass body.
Transparent plastic bowl. 2 burner side 3/8” F connections, with bushes for Ø 4x6, 6x8, 8x10 and
10x12 mm pipes. Tank side 3/8” F connection.
Type
RZ
Part number Cartridge type Filtration
Q.ty/
Box/
Box
Carton
0137100
-
200μ
1
40
€/unit
€/unit
Dimensions on page 387
ACCESSORIES
Type
70358
Part number
014.0051.000
Description
Fixing bracket and
screws
Notes
filter Mod.
70370/RE
Q.ty/
Box/
Box
Carton
1
1
70450
Special strainer filter for biodiesel, petrodiesel, fuel oil and air with aluminium cover and bowl. Max.
temperature: 90°C. PN 2. Viton gaskets. Filtration 100 microns.
Type
70452/01AGE
70451/01AGE
Part number
001.0030.007
001.0032.007
Dimensions on page 384
70310
Cartridge type
Stainless steel
pleated cartridge.
Viton seals
Stainless steel
pleated cartridge.
Viton seals
Connec- Q.ty/
Box/
tions
Box
Carton
1/4"
10
10
3/8"
10
10
€/unit
Special strainer filter for biodiesel, petrodiesel, fuel oil and air with aluminium cover and bowl. Max.
temperature: 90°C. PN 2. Viton gaskets. Filtration 100 microns.
Type
70311/01AE
70312/01AE
Part number
001.0072.006
001.0074.006
Dimensions on page 385
70100
Cartridge type
Stainless steel
pleated cartridge.
Viton seals
Stainless steel
pleated cartridge.
Viton seals
Connec- Q.ty/
Box/
tions
Box
Carton
3/8"
10
10
1/2"
10
10
€/unit
Special strainer filter for biodiesel, petrodiesel, fuel oil and air with aluminium cover and bowl. Max.
temperature: 90°C. PN 2. Viton gaskets. Filtration 100 microns.
Type
70107/01E
70104/01E
70101/01E
Part number
001.0110.005
001.0112.005
001.0111.005
Dimensions on page 385
Cartridge type
Stainless steel
pleated cartridge.
Viton seals
Stainless steel
pleated cartridge.
Viton seals
Stainless steel
pleated cartridge.
Viton seals
Connec- Q.ty/
Box/
tions
Box
Carton
1/2"
6
6
3/4"
6
6
1"
6
6
€/unit
72
